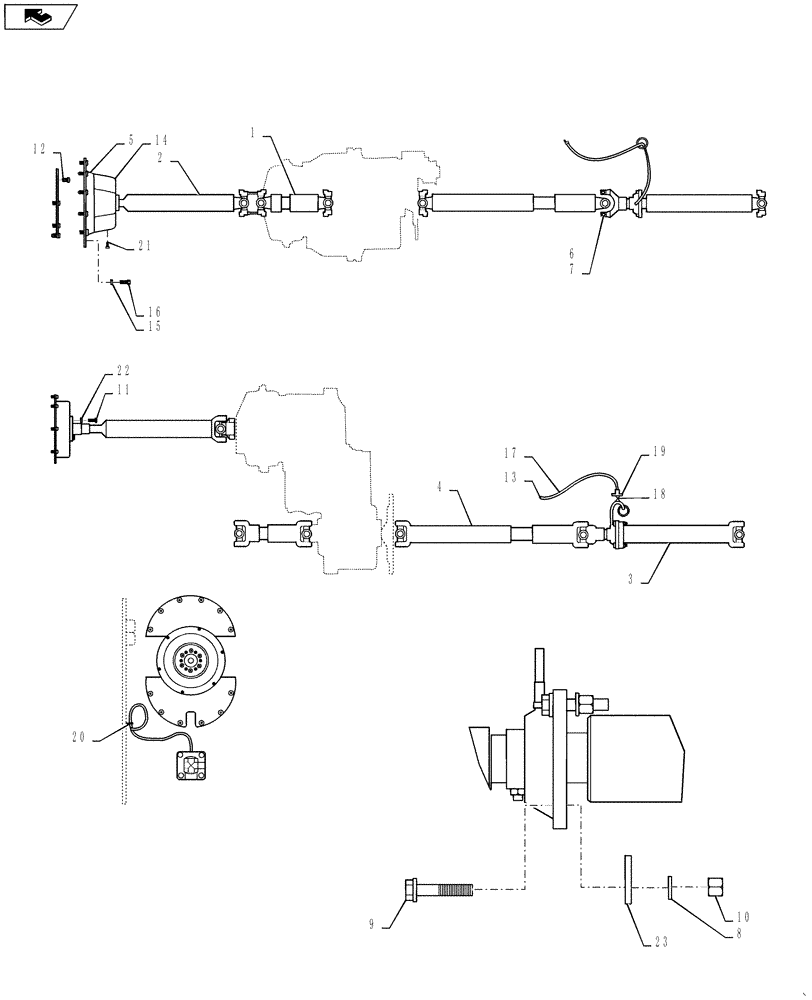

Запчасти Case 721F (21.113.01) - DRIVE SHAFT INSTALLATION - LIMITED SLIP (21) - TRANSMISSION

1

REF

INSTRUCTION

DRIVE SHAFT, Rear; See Figure 21.155.03

1шт.

2

REF

INSTRUCTION

DRIVE SHAFT, Engine; See Figure 21.155.04

1шт.

3

REF

INSTRUCTION

DRIVE SHAFT, Front; See Figure 21.155.01

1шт.

4

REF

INSTRUCTION

DRIVE SHAFT, Center; See Figure 21.155.02

1шт.

5

8501111

COUPLING FLANGE

Flywheel to Drive Shaft

1шт.

6

87439403

STRAP

Bearing Retainer

10шт.

7

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

3/8; 8

20шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

12

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

8шт.

13

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

14

87522101

COVER

Fan Deflector

1шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

16

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

11шт.

17

L54694

HOSE,4.8mm ID x 1041mm L

1041 mm (41 in); Incl. Ref. 19, 20

1шт.

18

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Not Illustrated

1шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Not Illustrated

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

21

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

Used with Ref. 14

2шт.

22

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

23

87567190

PLATE

Carrier Bearing

1шт.

24

L126936

SPACER

Plated

1шт.

25

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.
