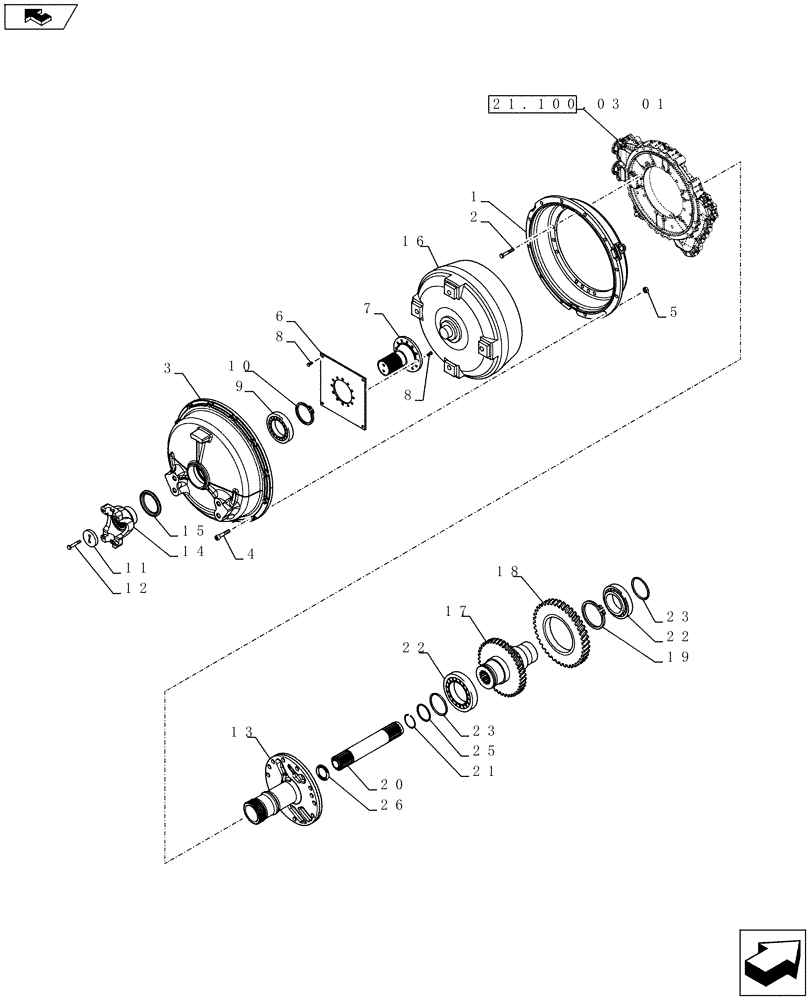

Запчасти Case 721F (21.100.16) - TRANSMISSION, TORQUE CONVERTER ASSEMBLY AND INPUT SHAFT (21) - TRANSMISSION

1

8603292

BELL HOUSING

Bell, 4-Speed

1шт.

1

87498519

HOUSING

Bell, 5-Speed

1шт.

2

8603293

SCREW,Hex, M10 x 65mm

M10 x 65

18шт.

3

8604676

COVER

Converter

1шт.

4

8603466

SCREW,M10 x 50mm

M10 x 50

12шт.

5

8900124986

NUT

12шт.

6

8604228

DIAPHRAGM

1шт.

7

87712322

SHAFT

Input

1шт.

8

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

16шт.

9

8604678

BALL BEARING

1шт.

10

87410351

SNAP RING

Vee

1шт.

11

8603635

WASHER

60 x 10

1шт.

12

8603405

BOLT,Hex, M8 x 50mm

2шт.

13

87712679

SHAFT

Stator

1шт.

14

8604614

YOKE

End

1шт.

15

8604229

RING

1шт.

16

84357989

TORQUE CONVERTER

4-Speed

1шт.

16

84357989R

REMAN-TORQUE CONVERT

721F TIER 4 (4-Speed)

1шт.

16

84357989C

CORE-TORQUE CONVERTR

Return Number

1шт.

16

84356802

TORQUE CONVERTER

5-Speed

1шт.

16

84356802R

REMAN-TORQUE CONVERT

721F TIER 4 (5-Speed)

1шт.

16

84356802C

CORE-TORQUE CONVERTR

Return Number

1шт.

17

8603461

SHAFT

Input

1шт.

18

8604706

GEAR

Input, 4-Speed

1шт.

18

8900124994

GEAR

Input, 5-Speed

1шт.

19

8603463

RETAINER

Ring

1шт.

20

8603297

SHAFT

4-Speed

1шт.

20

8900124996

SHAFT

5-Speed

1шт.

21

8603298

SNAP RING

1шт.

22

8603301

ROLLER BEARING,60mm ID x 95mm OD x 27mm W

2шт.

23

8603302

PISTON RING

2шт.

24

8900125103

GASKET

5-Speed Only

1шт.

25

8900125104

RING

5-Speed Only

1шт.

26

8603298

SNAP RING

1шт.
