Запчасти Case 721F (21.100.14) - TRANSMISSION, HOUSING ASSEMBLY (21) - TRANSMISSION

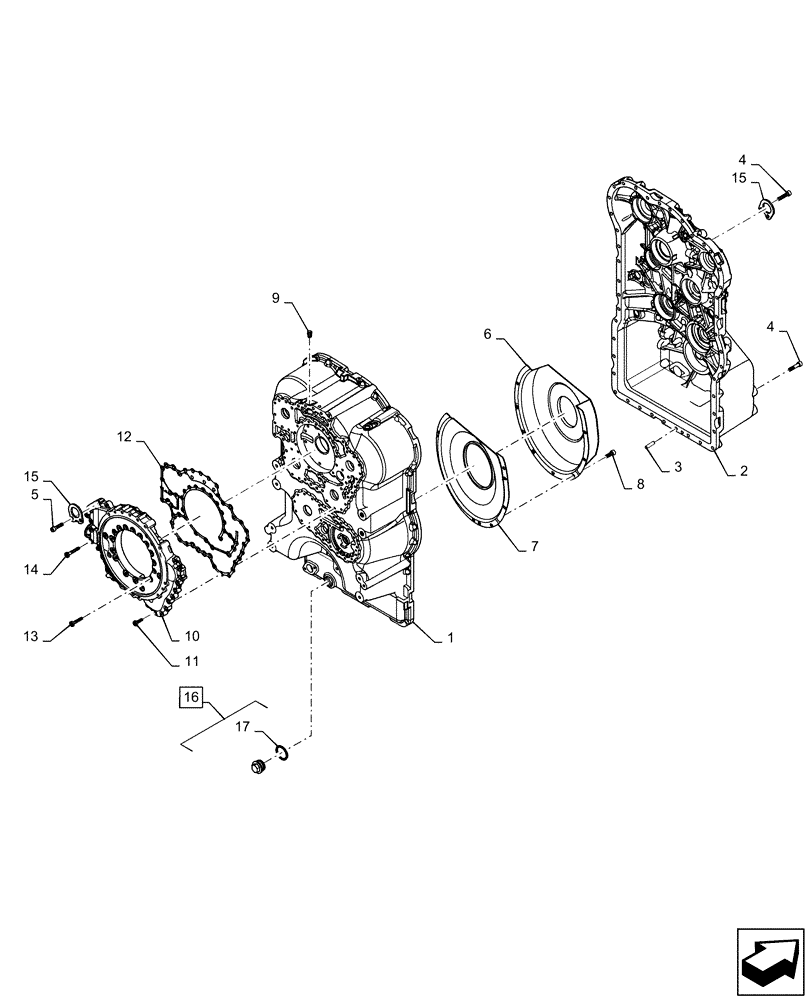

Схема запчастей Case 721F - (21.100.14) - TRANSMISSION, HOUSING ASSEMBLY (21) - TRANSMISSION
15
15
1
9
17
3
14
5
13
12
6
4
2
10
11
16
8
4
7

Артикул

Название

Примечание

Количество

1

87742959

TRANSMISSION HOUSING

Front Section

1шт.

2

84357993

TRANSMISSION HOUSING

Rear, 4-Speed

1шт.

2

84357351

HOUSING

Rear, 5-Speed

1шт.

3

1493416

PIN

Cylindrical Alignment

2шт.

4

8603466

SCREW,M10 x 50mm

42шт.

5

8603469

SCREW,Hex, M10 x 40mm

2шт.

6

8603468

GUARD

Transmission Hub

1шт.

7

8603467

SCREEN

Sheet, Transmission Hub Guard

1шт.

8

8603306

SCREW,M8 x 12mm

5шт.

9

8603214

BREATHER

Transmission, Housing

1шт.

10

87712648

HOUSING

Oil Feed Plate

1шт.

11

8603308

SCREW

Oil Feed Plate Mounting

15шт.

12

8603309

GASKET

Oil Feed Plate to Transmission Housing

1шт.

13

8603310

SCREW,M8 x 45mm, Cl 10.9

21шт.

14

8603311

SCREW

Oil Feed Plate Mounting

4шт.

15

8603316

PLATE

Spacer, Oil Feed Plate

2шт.

16

8603319

PLUG

Screw, Incl 17

1шт.

17

8603318

O-RING

Plug to Transmission Housing

1шт.

Выбрано товаров: 18
