(21.130.AZ[01]) - TRANSMISSION, 4 SPEED CONTROLLER INSTALLATION

Запчасти Case 621F (21.130.AZ[01]) - TRANSMISSION, 4 SPEED CONTROLLER INSTALLATION (21) - TRANSMISSION

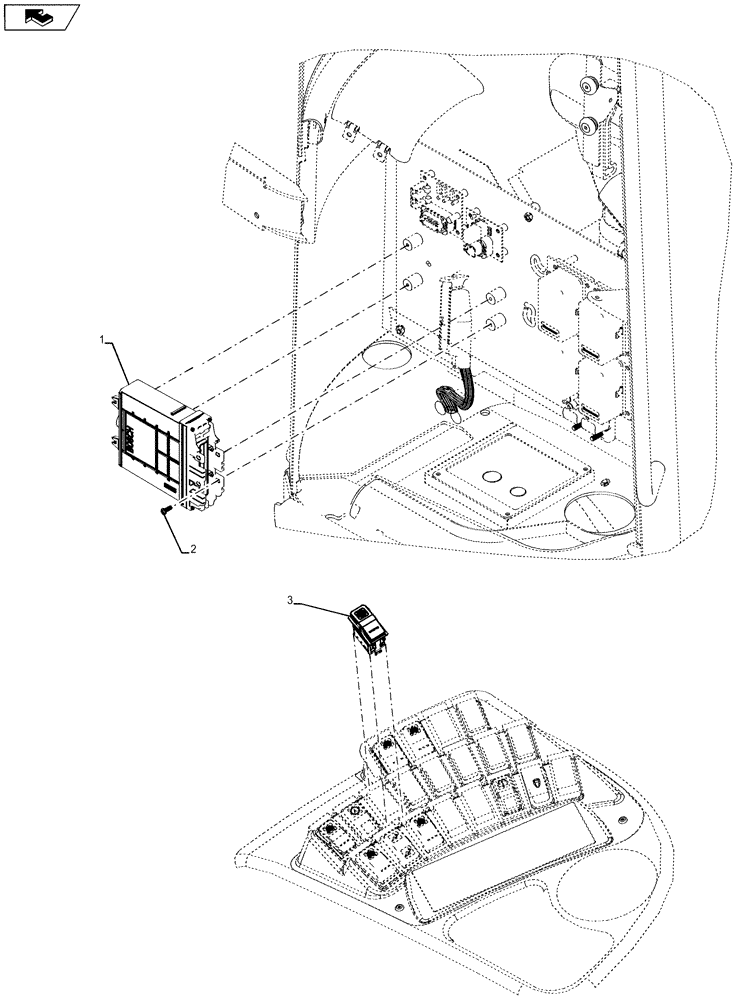

Схема запчастей Case 621F - (21.130.AZ[01]) - TRANSMISSION, 4 SPEED CONTROLLER INSTALLATION (21) - TRANSMISSION
2
3
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84421811

CONTROLLER

4-Speed Transmission, 20KPH

1шт.

1

84421811R

REMAN ELECT CONTROL

4-Speed Transmission, 20KPH

1шт.

1

84421811C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.

3

374421A4

SWITCH

Declutch

1шт.

Выбрано товаров: 5
