(90.119.AB[02]) - CYLINDER GUARD COVER

Запчасти Case 621F (90.119.AB[02]) - CYLINDER GUARD COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

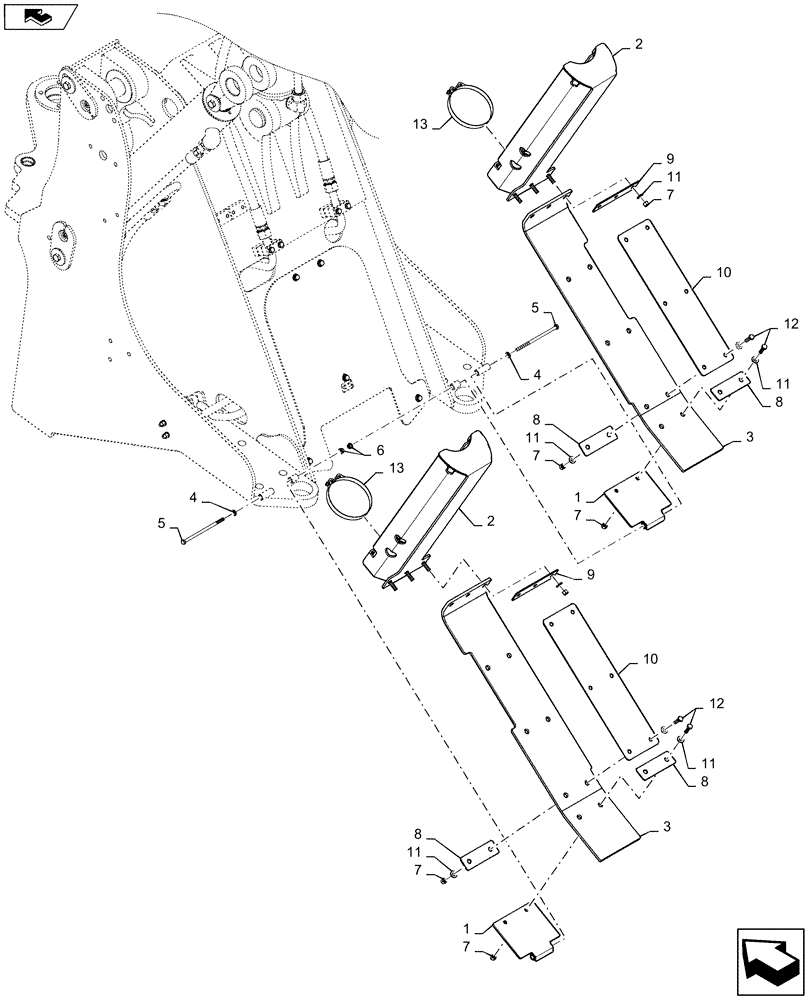

Схема запчастей Case 621F - (90.119.AB[02]) - CYLINDER GUARD COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
8
8
7
11
13
11
3
13
7
9
8
home
7
11
11
7
12
2
8
5
3
10
7
4
9
4
1
5
6
11
1
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488881

HINGE

Ejector, CE Gray

2шт.

2

47382602

GUARD

Cylinder, V Shape, CE Gray

2шт.

3

47499813

SHEET,203mm W x 1075mm L

Rubber Flap

2шт.

4

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

0.406X0.781X0.105 HTS ZND HDN

2шт.

5

280505

BOLT,Hex, 3/8"-16 x 7 1/2", G5

2шт.

6

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

22шт.

8

47407553

PLATE

Flap Support, CE Gray

8шт.

9

47407526

PLATE

Ejector Fastener, CE Gray

2шт.

10

47407549

PLATE

Support, CE Gray

2шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

34шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

13

214-21160

CLAMP,#160, 5.87"-6.18", T-Bolt

6шт.
