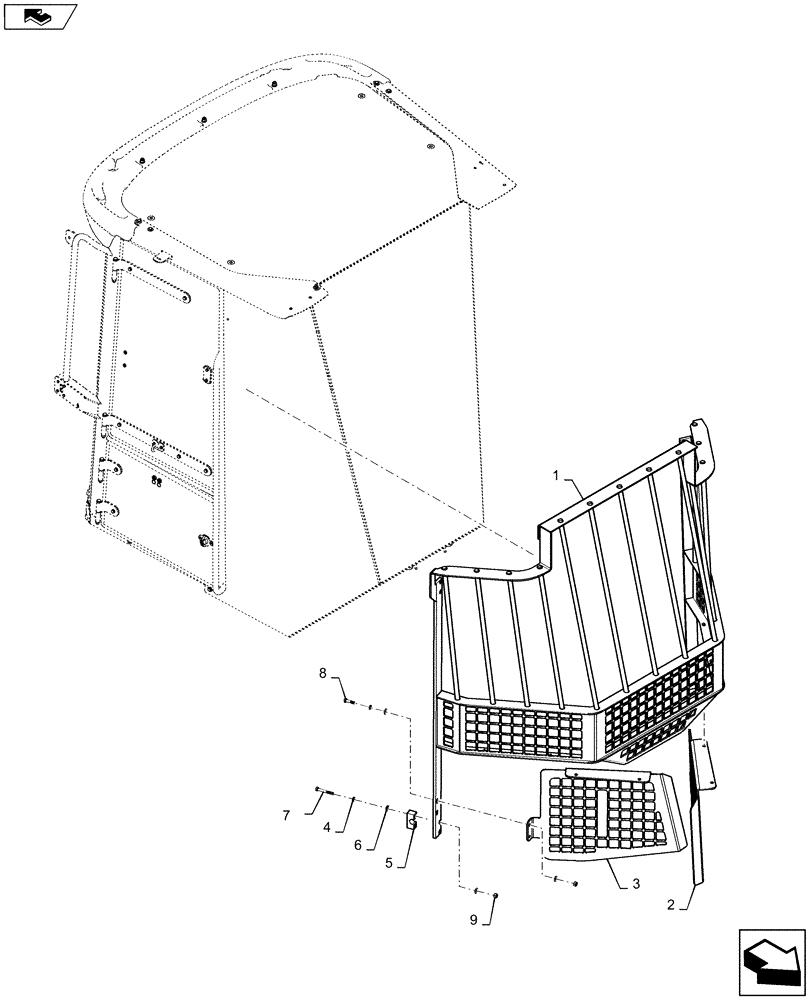

Запчасти Case 621F (90.119.AB[01]) - WINDSHIELD GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47382544

GUARD

Windshield, CE Gray

1шт.

2

47382548

SCREEN

Lower Windshield, LH, CE Gray

1шт.

3

47382547

SCREEN

Lower Windshield, RH, CE Gray

1шт.

4

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10 C72 ZND

16шт.

5

47411065

CLAMP BRACKET

4шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

32шт.

7

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

8шт.

8

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

8шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

16шт.
