(90.116.BL[01]) - FRONT CHASSIS GUARD

Запчасти Case 621F (90.116.BL[01]) - FRONT CHASSIS GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

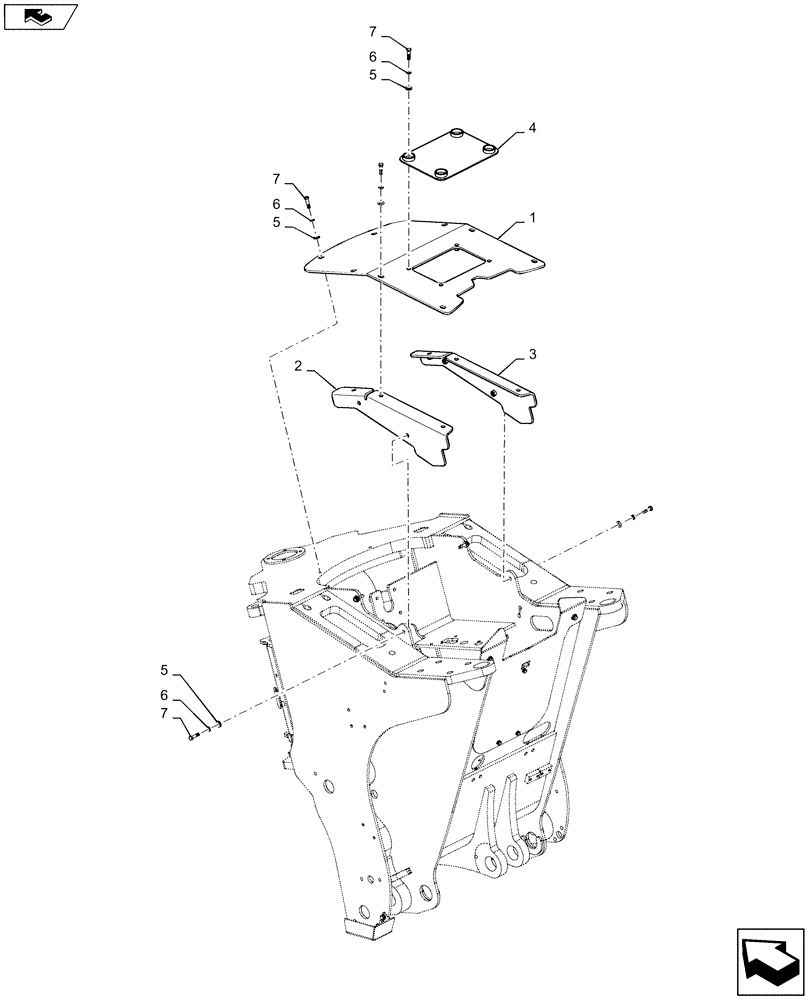

Схема запчастей Case 621F - (90.116.BL[01]) - FRONT CHASSIS GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
6
home
5
7
7
4
6
1
7
5
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47407575

PLATE

Front Skid, CE Gray

1шт.

2

47400180

GUARD

Belly, LH, CE Gray

1шт.

3

47400184

GUARD

Belly, RH, CE Gray

1шт.

4

47400206

GUARD

Access, CE Gray

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

16шт.

6

892-11012

LOCK WASHER,M12

16шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

16шт.
