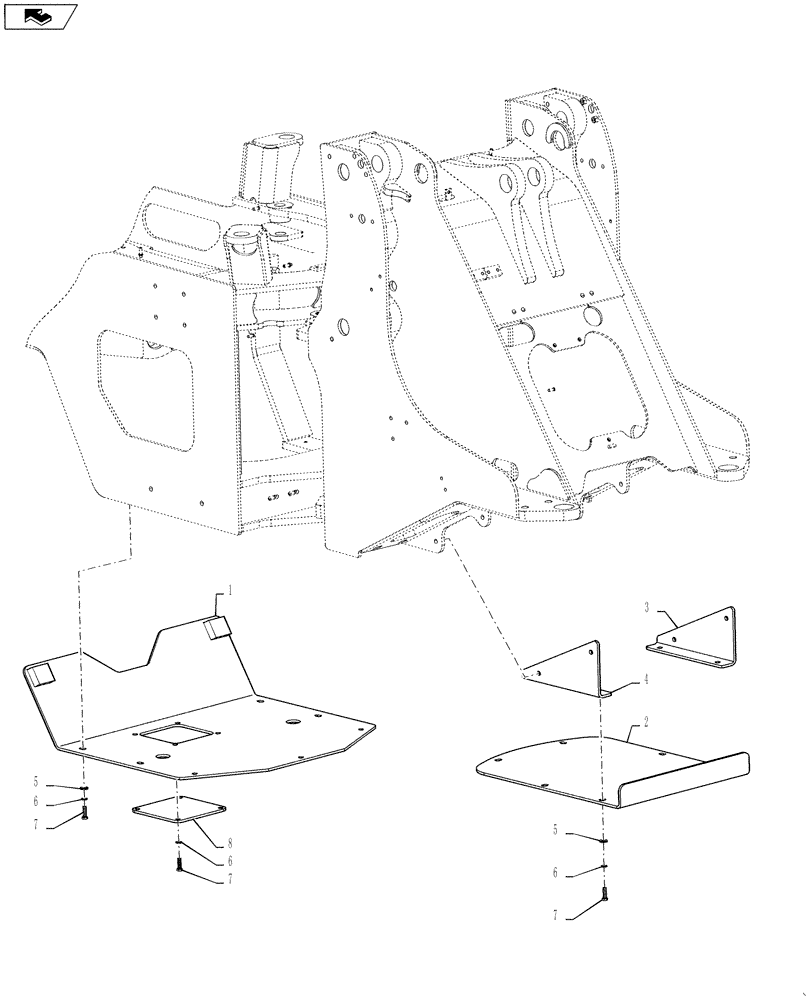

Запчасти Case 621F (90.116.BE[02]) - REAR SKID PLATE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87598264

SKID PLATE

Rear

1шт.

2

87597594

SKID PLATE

Front

1шт.

3

87597597

SKID PLATE

Front LH

1шт.

4

87597598

SKID PLATE

Front RH

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

17шт.

6

892-11012

LOCK WASHER,M12

21шт.

7

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

21шт.

8

87598267

COVER

Transmission Drain

1шт.
