Запчасти Case 621F (90.108.09[02]) - DECALS - NORTH AMERICA - COMMON TO MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

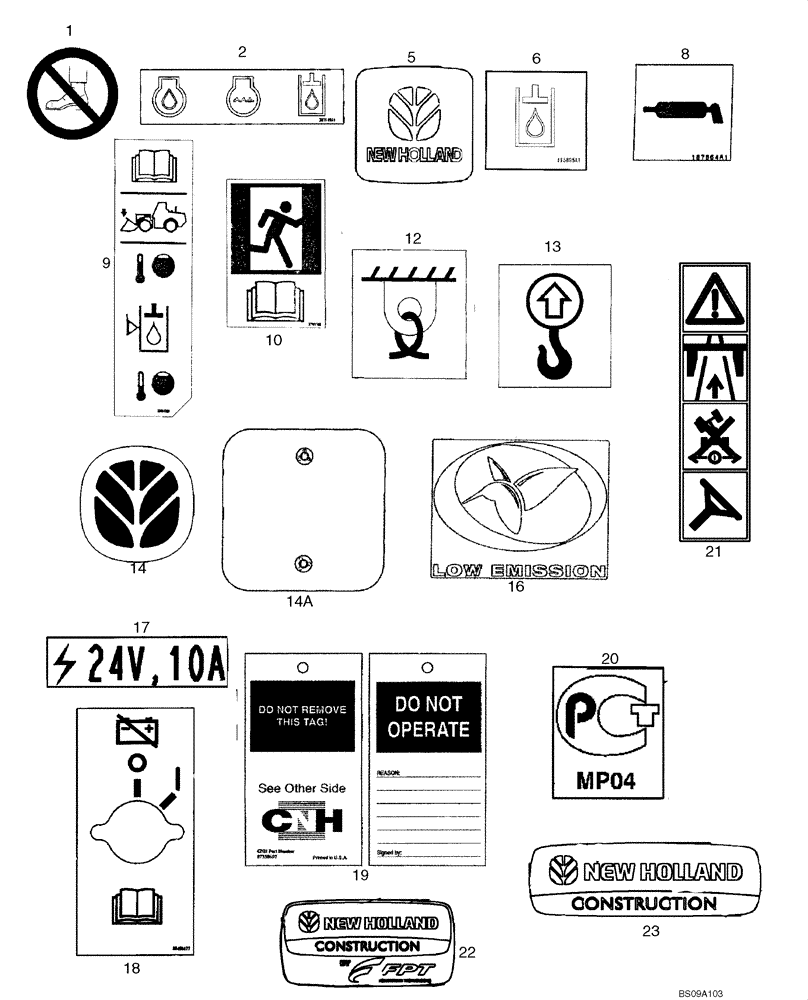

Схема запчастей Case 621F - (90.108.09[02]) - DECALS - NORTH AMERICA - COMMON TO MODELS (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
17
22
21
13
1
10
20
2
5
19
6
14a
23
16
8
9
18
12

Артикул

Название

Примечание

Количество

1

E134402

DECAL

No Step

1шт.

2

387149A1

DECAL

Fluid Drains

1шт.

3

395895A1

DECAL

Hydraulic Fluid

1шт.

4

187864A1

DECAL

Lubrication

2шт.

5

386741A2

DECAL

Hydraulic Fluid Temperature Level

1шт.

6

329051A1

DECAL

Emergency Exit

1шт.

7

84409663

DECAL

Tie Down

4шт.

8

84409662

DECAL

Lift

4шт.

9

86594515

DECAL

Leaf Logo

1шт.

10

87319887

SUPPORT

1шт.

11

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

Not Illustrated

2шт.

12

139728A1

DECAL

2шт.

13

87490305

DECAL

NH Engine

1шт.

14

87701340

DECAL

Low Emission

2шт.

15

364741A1

DECAL

24 Volt; 10 Amp

1шт.

16

84419569

DECAL

Disconnect Switch

1шт.

17

87358697

TAG

Do Not Operate

1шт.

18

84128349

DECAL

Steering Warning

1шт.

19

84123944

DECAL

New Holland

3шт.

20

84284896

DECAL,DEF TANK identification label

Def Tank

1шт.

Выбрано товаров: 20
