Запчасти Case 621F (90.108.04) - DECALS - ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS

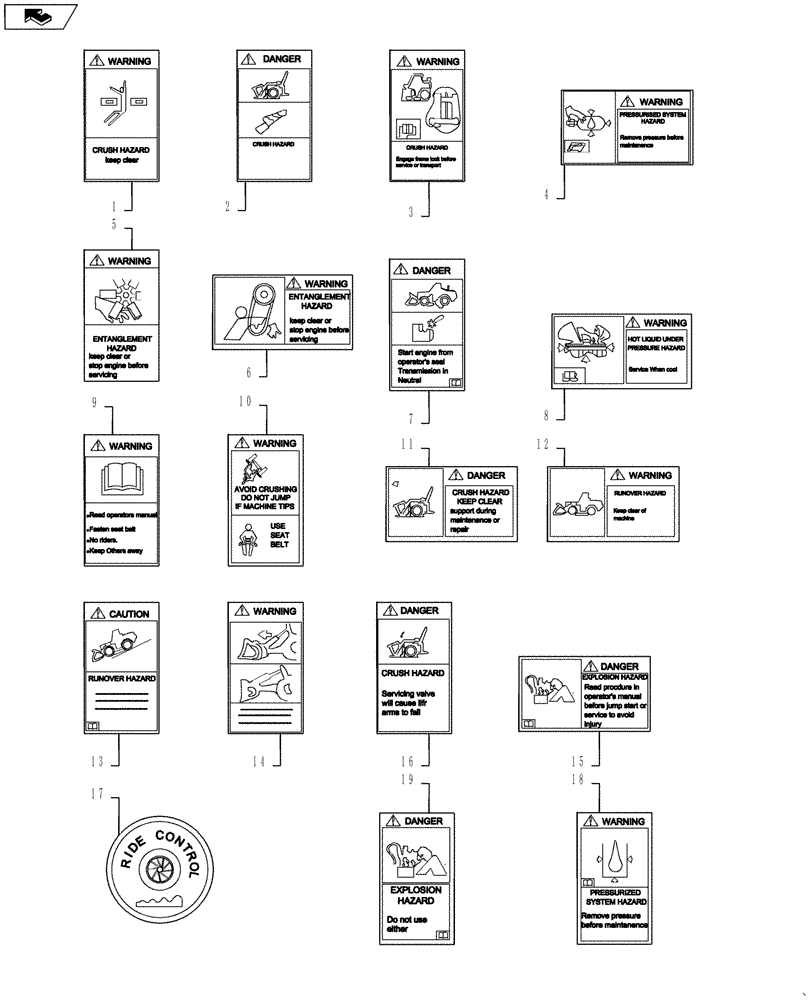

Схема запчастей Case 621F - (90.108.04) - DECALS - ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
16
10
1
11
8
13
7
5
19
6
3
12
4
2
9
17
14
18
home

Артикул

Название

Примечание

Количество

1

323694A1

DECAL

Warning; Crush Hazard

2шт.

2

407737A2

DECAL

Lift Arm Support

1шт.

3

329047A1

DECAL

Warning; Crush Hazard

1шт.

4

328904A1

DECAL

Warning; Pressurized System Hazard

2-3шт.

5

87488606

DECAL

Warning; Fan

3шт.

6

388112A1

DECAL

Warning; Belt Entanglement

1шт.

7

87488616

DECAL

Danger; Starting In Gear

1шт.

8

329044A1

WARNING DECAL,168mm x 88mm H

Hot Liquid Hazard

1шт.

9

329049A1

DECAL

Caution; Block Wheels

1шт.

10

382622A1

DECAL,60mm x 90mm H

Warning; General Operation

1шт.

11

321-7030

WARNING DECAL

Do Not Jump

1шт.

12

328754A1

DANGER DECAL

Warning; Crush Hazard

1шт.

13

328752A1

DECAL

Runover Hazard

1шт.

14

364742A1

DECAL

Warning; Check Attachment

1шт.

15

335889A1

DECAL

Warning; Pressurized System Hazard

2шт.

16

87453132

DECAL

Danger; Crush Hazard

2шт.

17

412471A1

DECAL

Danger; Explosion Hazard

1шт.

18

8603092

WARNING DECAL,55mm x 95mm H

Warning; Ether Explosion; Only Installed if Equipped With Grid Heater

2шт.

19

84404558

DANGER DECAL

Danger; Explosion Hazard

3шт.

Выбрано товаров: 19
