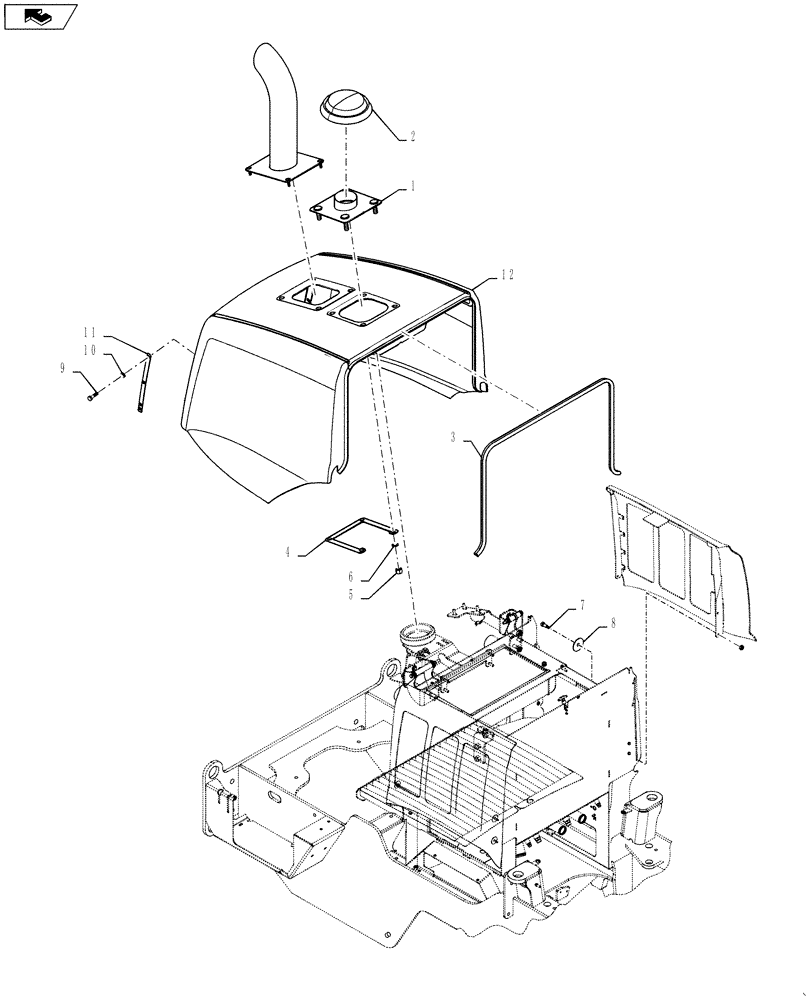

Запчасти Case 621F (90.100.AU[02]) - ENGINE HOOD INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

8500379

AIR INTAKE

Intake, Top

1шт.

2

8501036

CAP

Rain

1шт.

3

8605846

RUBBER SEAL,2385mm L

Hood

1шт.

4

8500382

PLATE

Intake Backing

1шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

6

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

7

87632741

STEP BOLT,M8 x 16mm, Cl 12.9

6шт.

8

495-81144

WASHER,0.41" ID x 1.75" OD x 0.06" Thk

6шт.

9

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

6шт.

10

892-11006

LOCK WASHER,M6

6шт.

11

444931A1

PLATE

Backing, Rear Grille

2шт.

12

84251581

ENGINE HOOD

1шт.
