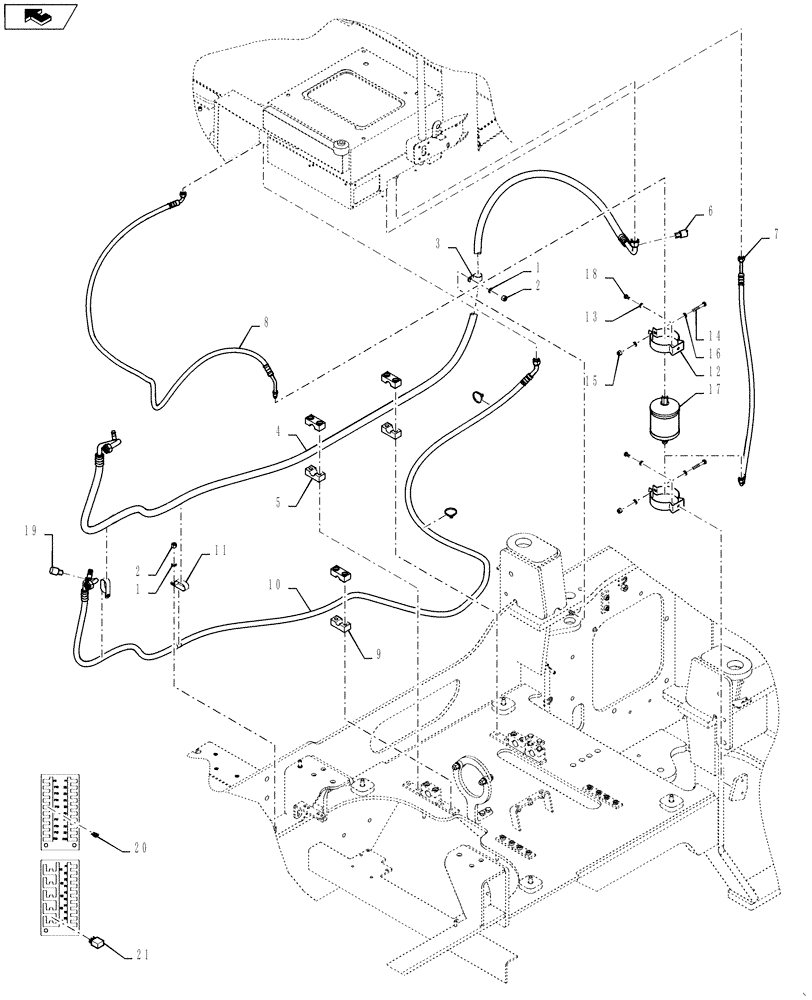

Запчасти Case 621F (50.200.AK[02]) - AIR CONDITIONING, PLUMBING AND MOUNTING (50) - CAB CLIMATE CONTROL

1

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

3

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

4

84373399

HOSE ASSY.

1шт.

5

367489A1

BLOCK

Tube Mounting

2шт.

6

122579A1

SWITCH, A/C LOW PRES

Low Pressure

1шт.

7

84191329

A/C HOSE

Dryer to Cab

1шт.

8

84192894

A/C HOSE

Condenser to Dryer

1шт.

9

379374A1

BLOCK

Tube Mounting

1шт.

10

84375235

HOSE ASSY.

1шт.

11

31-1081

CLAMP

Double

2шт.

12

433723A1

CLAMP

Bracket, Receive/Dryer

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

15

832-10406

NUT,M6 x 1, Cl 8

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

17

295006A1

RECEIVER-DRYER

HFC-134

1шт.

18

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

19

232948A1

SWITCH, A/C HIGH PRE

1шт.

20

121411A1

FUSE,7.5A, Mini, Brown

1шт.

21

87312626

RELAY,24V

5-Pin

1шт.
