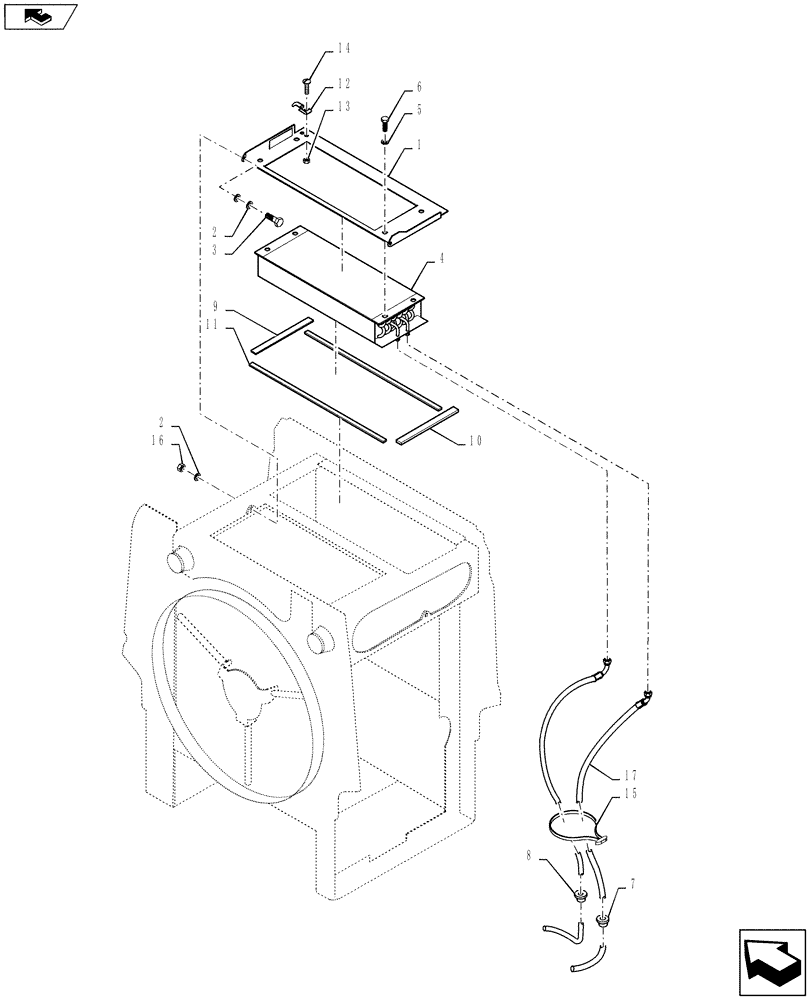

Запчасти Case 621F (50.200.AK[01]) - AIR CONDITIONING CONDENSER INSTALLATION (50) - CAB CLIMATE CONTROL

1

84411602

PLATE

1шт.

2

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

3

561-703

HEX SOC SCREW,M8 x 32.4, 10 x 16mm shldr, Cl 12.9

2шт.

4

8500878

CONDENSER

Air Conditioning

1шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

7

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

8

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

9

87432328

SEAL

AC Condenser, Latch

1шт.

10

8602498

SEALING STRIP,25mm W x 294mm L x 13mm Thk

AC Cooler, Foam

1шт.

11

8500133

OIL SEAL

Oil Coolers, Side

2шт.

12

60-6318T91

LOCK

1шт.

13

225-14108

NUT,#8-32

2шт.

14

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

Strap

5шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

17

84191329

A/C HOSE

1шт.
