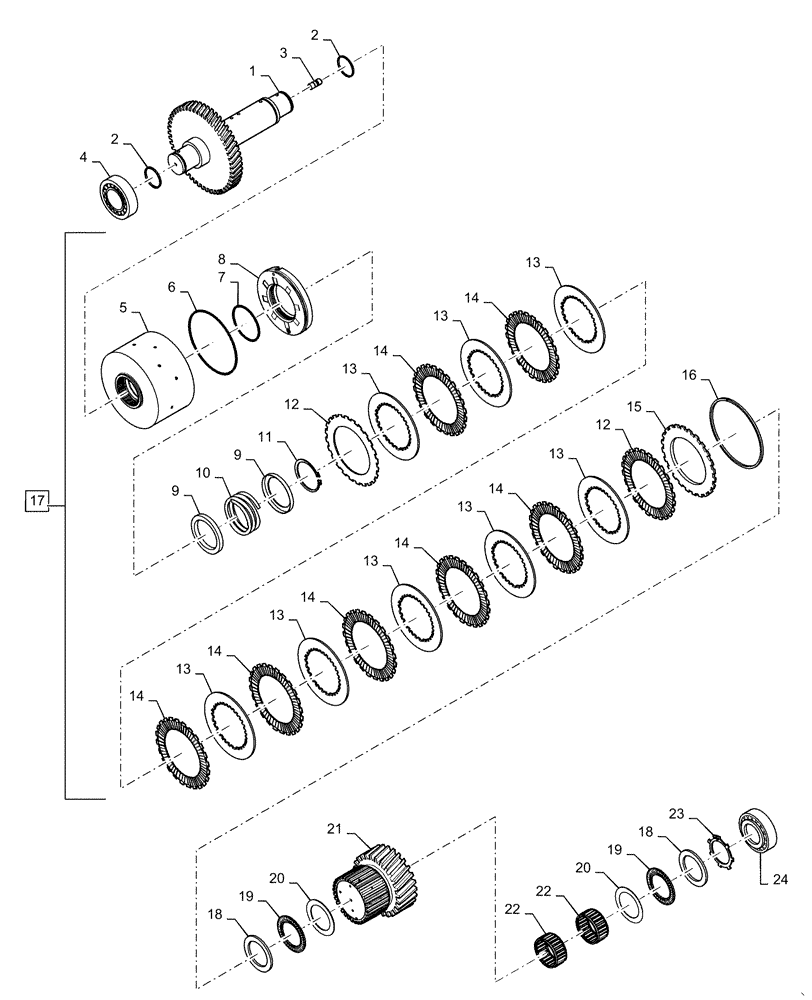

Запчасти Case 621F (21.155.AN[05]) - 2ND GEAR CLUTCH ASSEMBLY (21) - TRANSMISSION

1

84395231

SHAFT

2nd speed

1шт.

2

8603436

PISTON RING

Clutch Gear Shaft

2шт.

3

8603407

STUD

Clutch Gear Shaft

1шт.

4

84395186

ROLLER BEARING

Assembly, Clutch Shaft

1шт.

5

87712651

COUPLING

Shaft to Jack Piston

1шт.

6

8479611

O-RING

Coupling

1шт.

7

331418A1

O-RING

Jack Piston

1шт.

8

331417A1

JACK PISTON

Clutch Assembly

1шт.

9

73142965

GUIDE

Clutch Shaft

2шт.

10

73142964

SPRING

Guided

1шт.

11

933944R1

RING,52.88mm

1шт.

12

331420A1

CLUTCH PLATE

Clutch Disk

2шт.

13

331422A1

CLUTCH DISC

Inner

8шт.

14

331421A1

CLUTCH PLATE

Outer

7шт.

15

84395183

SHIM

Backing Shim

1шт.

16

185446A1

RING, SNAP

2.1mm

1шт.

16

185439A1

RING, SNAP

2.25mm

1шт.

16

185442A1

RING, SNAP

2.4mm

1шт.

16

331424A1

SHIM

2.55mm

1шт.

16

331425A1

SHIM

2.7mm

1шт.

16

331426A1

SHIM

2.85mm

1шт.

16

331427A1

SHIM

3.0mm

1шт.

16

331428A1

SHIM

3.15mm

1шт.

16

331429A1

SHIM

3.3mm

1шт.

16

331430A1

SHIM,3.45mm Thk

1шт.

16

331431A1

SHIM

3.6mm

1шт.

16

331432A1

SHIM,3.75mm Thk

1шт.

16

331433A1

SHIM,3.9mm Thk

1шт.

16

331434A1

RING, SNAP

4.05mm

1шт.

16

331435A1

RING, SNAP

4.2mm

1шт.

17

87560263

CLUTCH

Assembly, Incl 5 - 16

1шт.

18

8603438

DISC

Running, Idler

2шт.

19

8603439

THRUST BEARING

Cage Axial, Needle

2шт.

20

8603440

THRUST WASHER

Axial, Idler

2шт.

21

87712653

IDLER

Assembly, Clutch

1шт.

22

8603441

NEEDLE BEARING CAGE

Idler, Internal

2шт.

23

8603442

RETAINER

Idler, Internal

1шт.

24

8603435

ROLLER BEARING

Idler, External Assembly

1шт.
