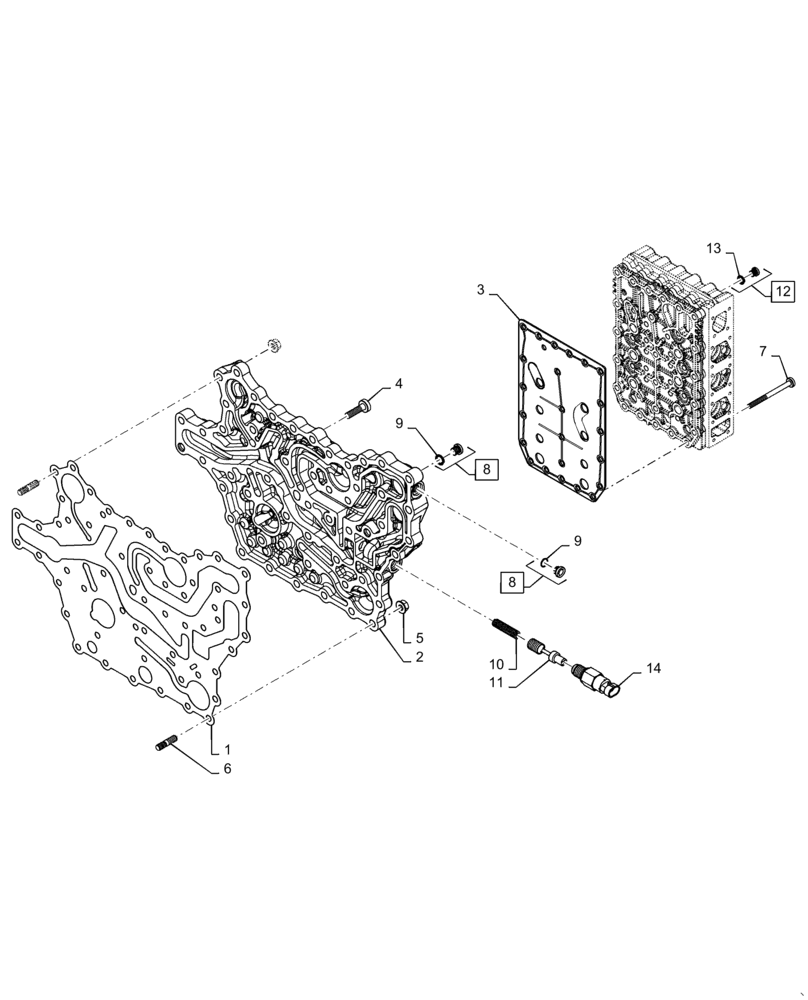

Запчасти Case 621F (21.135.AQ) - MANIFOLD CONTROL VALVE (21) - TRANSMISSION

1

8603184

GASKET

Housing to Manifold

1шт.

2

8603185

MANIFOLD

Duct Plate

1шт.

3

47587023

SHEET

Interm

1шт.

4

47586783

SCREW

Torx

37шт.

5

47587035

NUT

Duct Plate to Gasket

14шт.

6

47587031

STUD

Duct Plate to Gasket

14шт.

7

47587041

SCREW

Mounting, Intem Sheet

23шт.

8

84357396

HEX PLUG

Manifod Plate, Incl 9

2шт.

9

8603358

O-RING,2mm Thk x 13mm ID

2шт.

10

8603534

SPRING

Compression, Speed Control

1шт.

11

8603533

PISTON

Filter Bypass

1шт.

12

84357391

HEX PLUG

Manifold Plate, Incl 13

8шт.

13

8603215

O-RING,8mm ID x 1.5mm Width

8шт.

14

8603537

SWITCH

Filter Maintenance

1шт.
