(21.113.AQ) - TRANSMISSION HOUSING

Запчасти Case 621F (21.113.AQ) - TRANSMISSION HOUSING (21) - TRANSMISSION

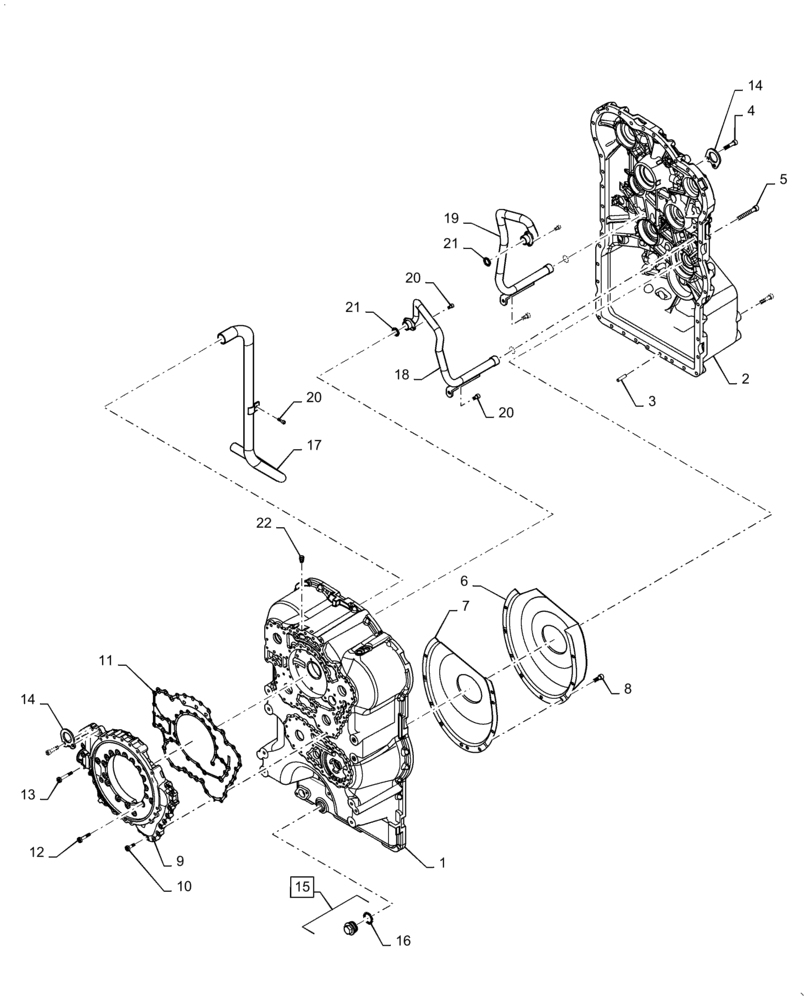

Схема запчастей Case 621F - (21.113.AQ) - TRANSMISSION HOUSING (21) - TRANSMISSION
5
20
4
8
21
14
20
17
21
20
18
3
1
11
10
15
13
14
2
19
6
16
7
12
9
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84147441

HOUSING

Forward Section

1шт.

2

84252191

TRANSMISSION HOUSING

Rear Section

1шт.

3

1493416

PIN

Cylindrical

2шт.

4

8603469

SCREW,Hex, M10 x 40mm

35шт.

5

87715358

SCREW

Cap

6шт.

6

8603304

HOUSING

Sheet, Screen

1шт.

7

8603305

GUARD

Sheet, Screen

1шт.

8

8603306

SCREW,M8 x 12mm

Sheet, Screen

1шт.

9

87712648

HOUSING

Oil Feed

1шт.

10

8603308

SCREW

Cap

15шт.

11

8603309

GASKET

Oil Feed Housing to Forward Section Housing

1шт.

12

8603310

SCREW,M8 x 45mm, Cl 10.9

21шт.

13

8603311

SCREW

Cap

6шт.

14

8603316

PLATE

Fixing

2шт.

15

84357352

PLUG

Breather, Incl 16

1шт.

16

8603318

O-RING

Incl in 15

1шт.

17

84396311

TUBE

Suction

1шт.

18

8605280

TUBE

Transmission Oil

1шт.

19

8605281

TUBE

Transmission Oil

1шт.

20

8603306

SCREW,M8 x 12mm

7шт.

21

8603725

O-RING

Transmission Oil Tube to Housing

4шт.

22

8603214

BREATHER

Plug

1шт.
