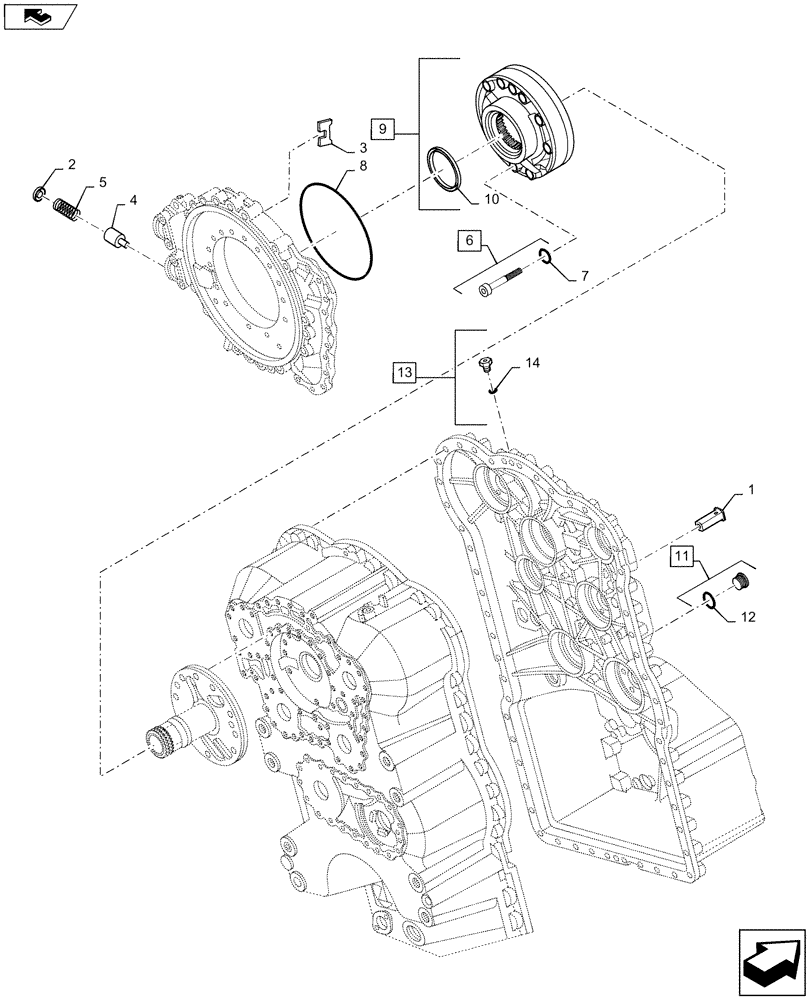

Запчасти Case 621F (21.100.AS) - OIL PUMP AND REGULATOR VALVE (21) - TRANSMISSION

1

8603378

VALVE

Pressure Relief

1шт.

2

8603380

SPRING SEAT

Compression Spring

1шт.

3

8603381

PLATE

Pressure

1шт.

4

8603382

PISTON

Compression Spring

1шт.

5

8603383

SPRING

Compression

1шт.

6

8603384

SCREW

Hydraulic Pump Hub Mounting, Incl 7

10шт.

7

8603385

O-RING

Hydraulic Pump Hub

10шт.

8

87712668

O-RING,184.5" ID x 3" Width

1шт.

9

87711551

HYDRAULIC PUMP

Oil Pressure, Incl 10

1шт.

10

8603391

SEAL

Hydraulic Pump Hub

1шт.

11

8603400

PLUG

Transmission Housing, Incl 12

1шт.

12

8603401

O-RING,2mm Thk x 23mm ID

1шт.

13

8603357

PLUG

Housing, Incl 14

2шт.

14

8603358

O-RING,2mm Thk x 13mm ID

2шт.
