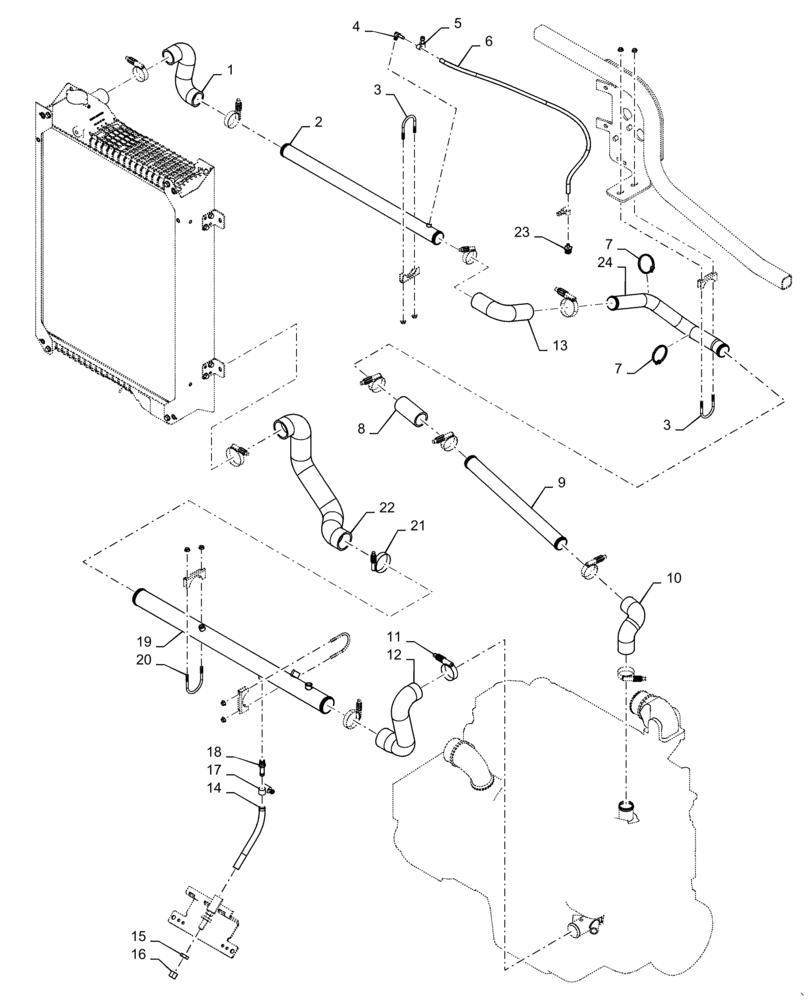

Запчасти Case 621F (10.400.AP[03]) - COOLING SYSTEM LINE, HEAVY DUTY (10) - ENGINE

1

8500083

RADIATOR HOSE,44.50 mm ID x 165,105,79,61 mm, SAE 20R4 CLASS D1

1шт.

2

84293050

TUBE

1шт.

3

382189A1

CLAMP

U-Bolt

2шт.

4

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

5

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

6

87552499

HOSE,6.40 mm ID x 1150.00 mm

1шт.

7

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

8

8501025

FLEXIBLE HOSE,44.50 mm ID x 110.00 mm, SAE 20R4 Class D1

1шт.

9

87617019

HYD TUBE,41.2 mm ID x 44.5 mm OD x 513 mm L

1шт.

10

84596599

RADIATOR HOSE

1шт.

11

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Constant Torque

9шт.

12

8500084

HOSE,48.00 mm ID, 57.20 mm ID x 235.00 mm, SAE 20R4 Class D1

1шт.

13

84293049

HOSE

Elbow 90°

1шт.

14

87536091

HOSE ASSY.

Coolant Drain

1шт.

15

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

16

218-755

CAP,37 Degree, 3/4"-16

1шт.

17

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

1шт.

18

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

19

84302103

TUBE

Bottom Coolant

1шт.

20

393632A1

CLAMP

U-Bolt

2шт.

21

L115548

CLAMP,57.15mm - 79.38mm

Constant Torque

3шт.

22

8500907

RADIATOR HOSE,57.20 mm ID x 300,275,95 mm, SAE 20 R4 CLASS D1

Radaitor, Bottom, 721 Only

1шт.

22

87552485

HOSE

Radaitor, Bottom, 621 Only

1шт.

23

87635840

VALVE

Check Venting

1шт.

24

47377570

TUBE

Top Coolant

1шт.
