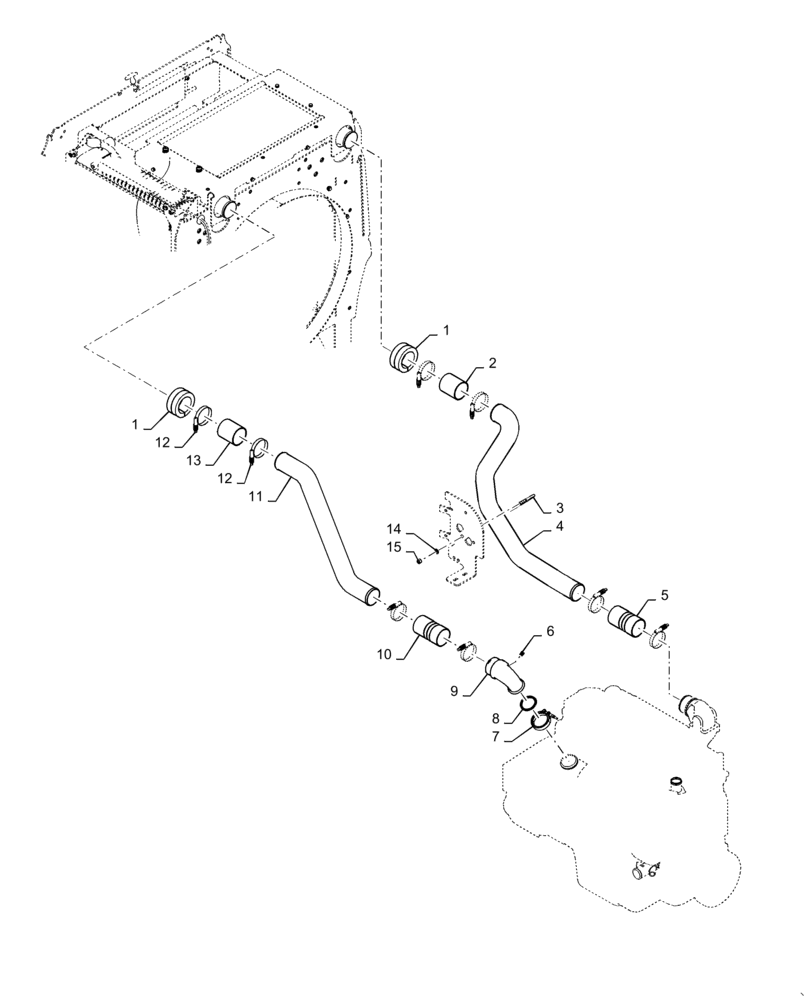

Запчасти Case 621F (10.400.AP[01]) - COOLING SYSTEM LINE INSTALLATION, HEAVY DUTY (10) - ENGINE

1

8500167

SEAL

Charge Air Tubes

2шт.

2

87572378

HOSE

Air Intake

1шт.

3

86012150

U-BOLT,M10, Round, 86mm W, 100mm L

1шт.

4

47626015

TUBE

Cool Side

1шт.

4

47626093

TUBE

Cool Side

1шт.

5

87340015

INTAKE AIR HOSE,76.20mm ID x 140mm L

1шт.

6

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1шт.

7

J069053

CLAMP,66.54mm ID

Turbo Outlet V-Band

1шт.

8

J883284

O-RING,0.07" Thk x 2.364" ID, -36

Turbo Outlet

1шт.

9

J918685

PIPE

Turbo Outlet Air Tranfer

1шт.

10

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

1шт.

11

47417180

TUBE

Hot Side Lower

1шт.

11

47444590

TUBE

Hot Side Lower

1шт.

12

L115549

CLAMP,69.85mm - 92.08mm

Constant Torque

8шт.

13

87572375

HOSE,76.2mm ID x 89mm L

Air Intake

1шт.

14

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
