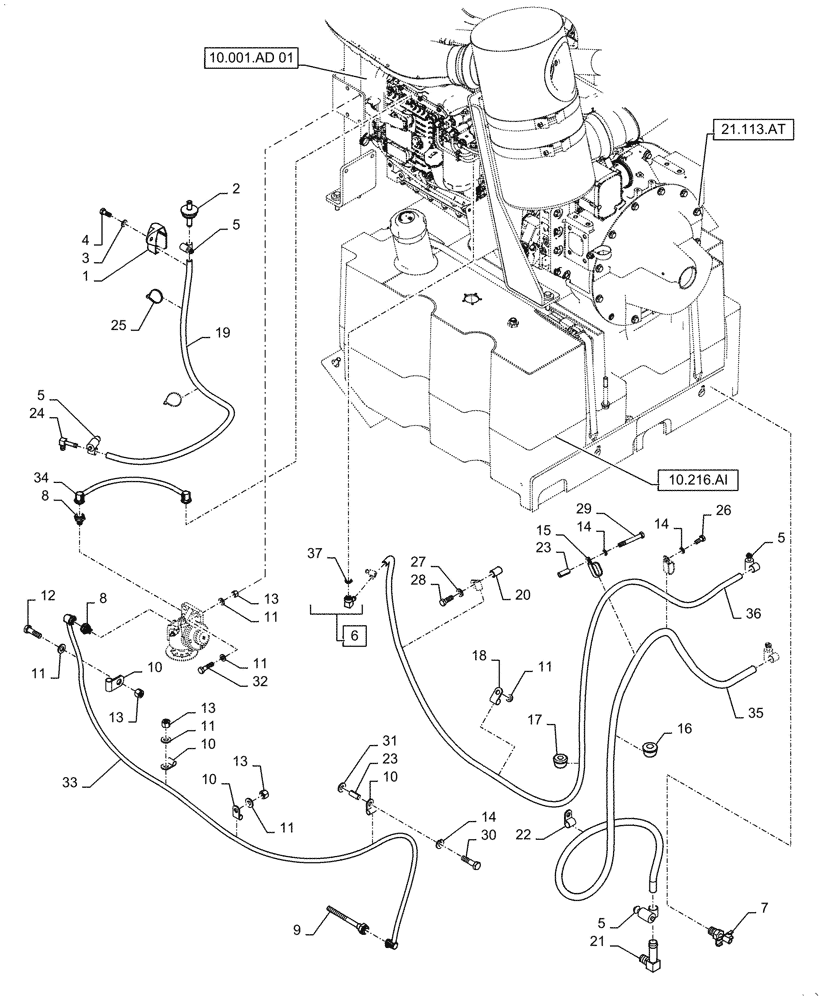

Запчасти Case 621F (10.216.BA) - FUEL LINE INSTALLATION (10) - ENGINE

1

186814A1

CAP

Fuel Tank Vent

1шт.

2

T103750

BREATHER

Breather

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

5

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

6шт.

6

87400460

90 ELBOW

Incl 37

1шт.

7

217-92

COCK

Fuel Tank Drain

1шт.

8

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

2шт.

9

8602537

TUBE,12mm OD x 171mm L

Tank Draw

1шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

13шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

5шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

14

892-11010

LOCK WASHER,M10

4шт.

15

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

16

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

2шт.

17

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

18

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

3шт.

19

87549248

HOSE,9.50 mm ID x 1130.00 mm

1шт.

20

87302880

SPACER,13.5mm ID x 19mm OD x 30.2mm L

2шт.

21

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

1шт.

22

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

23

L126936

SPACER

Plated

2шт.

24

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

26

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

28

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

29

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

30

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

31

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

32

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

33

84216623

TUBE

Fuel Tank to Prefilter

1шт.

34

84598569

TUBE

Filter to Engine

1шт.

35

87358040

FUEL HOSE,12.7mm ID x 2870mm L

Cooler to Tank

1шт.

36

87358043

FUEL HOSE

Engine to Cooler

1шт.

37

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

1шт.
