(90.100.AU [04]) - HOOD, PANEL W/ BRACKET, BRIGHT YELLOW

Запчасти Case 621F (90.100.AU [04]) - HOOD, PANEL W/ BRACKET, BRIGHT YELLOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

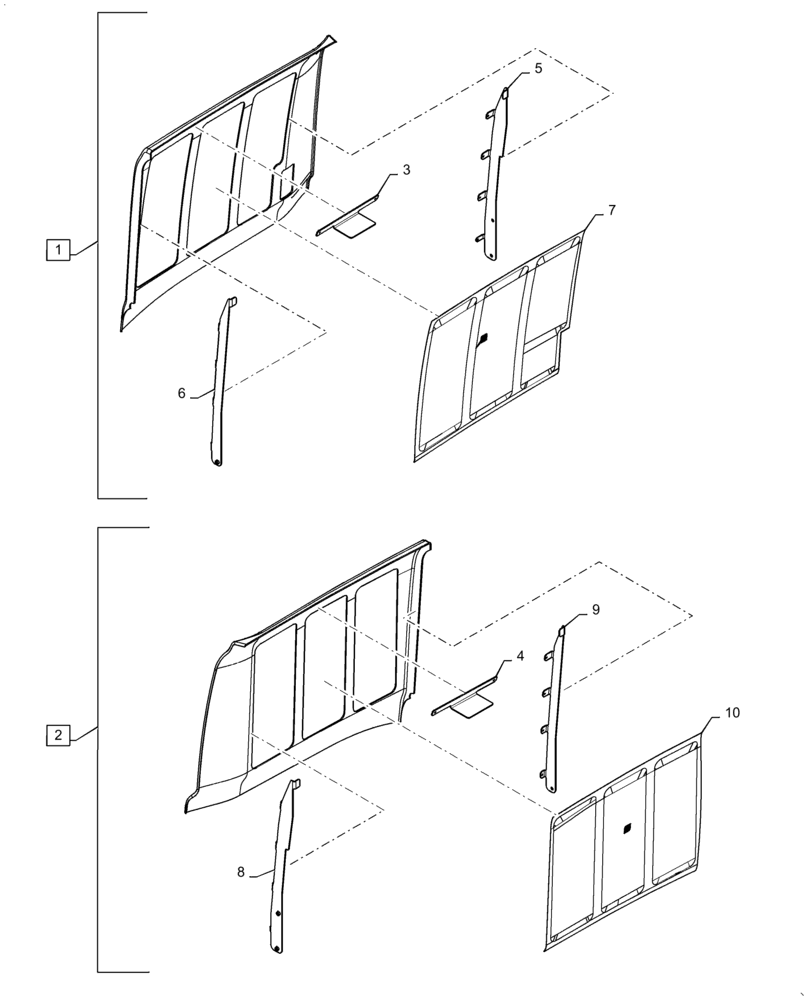

Схема запчастей Case 621F - (90.100.AU [04]) - HOOD, PANEL W/ BRACKET, BRIGHT YELLOW (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
7
9
2
5
4
3
1
10
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47492031

SIDE PANEL

LH Hood, Bright Yellow Incl 3, 5 -7

1шт.

2

47492023

SIDE PANEL

RH Hood, Bright Yellow Incl 4, 8 - 10

1шт.

3

8602732

BRACKET

LH Hood Panel

1шт.

4

8602733

BRACKET

RH Hood Panel

1шт.

5

NSS

NOT SOLD SEPARAT

LH Front Sliding Plate

1шт.

6

NSS

NOT SOLD SEPARAT

LHRear Sliding Plate

1шт.

7

NSS

NOT SOLD SEPARAT

LH Hood Screen

1шт.

8

NSS

NOT SOLD SEPARAT

RH Front Sliding Plate

1шт.

9

NSS

NOT SOLD SEPARAT

RH Read Sliding Plate

1шт.

10

NSS

NOT SOLD SEPARAT

RH Hood Screen

1шт.
