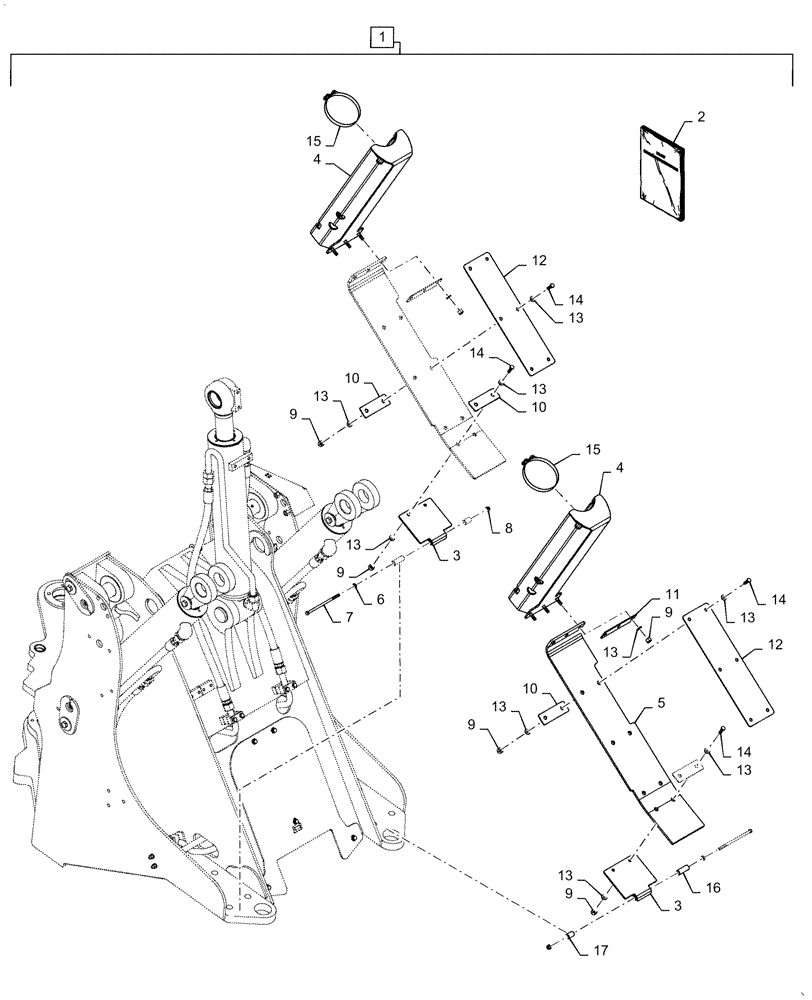

Запчасти Case 621F (88.100.90[05]) - DIA KIT, CYLINDER GUARDS AND EJECTORS (88) - ACCESSORIES

1

47661232

KIT

DIA Kit, Cylinder Guards and Ejectors, Incl 2 - 17

1шт.

2

47661233

INSTRUCTION

1шт.

3

47488881

HINGE

Ejector

2шт.

4

47382602

GUARD

Cylinder, V-Shape

2шт.

5

47499813

SHEET,203mm W x 1075mm L

Rubber Flap

2шт.

6

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

2шт.

7

280505

BOLT,Hex, 3/8"-16 x 7 1/2", G5

2шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

22шт.

10

47407553

PLATE

Flap Support

8шт.

11

47407526

PLATE

Ejector Fastener

2шт.

12

47407549

PLATE

Support

2шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

38шт.

14

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

15

214-21160

CLAMP,#160, 5.87"-6.18", T-Bolt

6шт.

16

47488877

TUBE

Ejector Hinge Mount

2шт.

17

47488985

TUBE

Ejector Hinge Mount Small

2шт.
