(88.100.90[03]) - DIA KIT SKID AND FUEL TANK GUARDS

Запчасти Case 621F (88.100.90[03]) - DIA KIT SKID AND FUEL TANK GUARDS (88) - ACCESSORIES

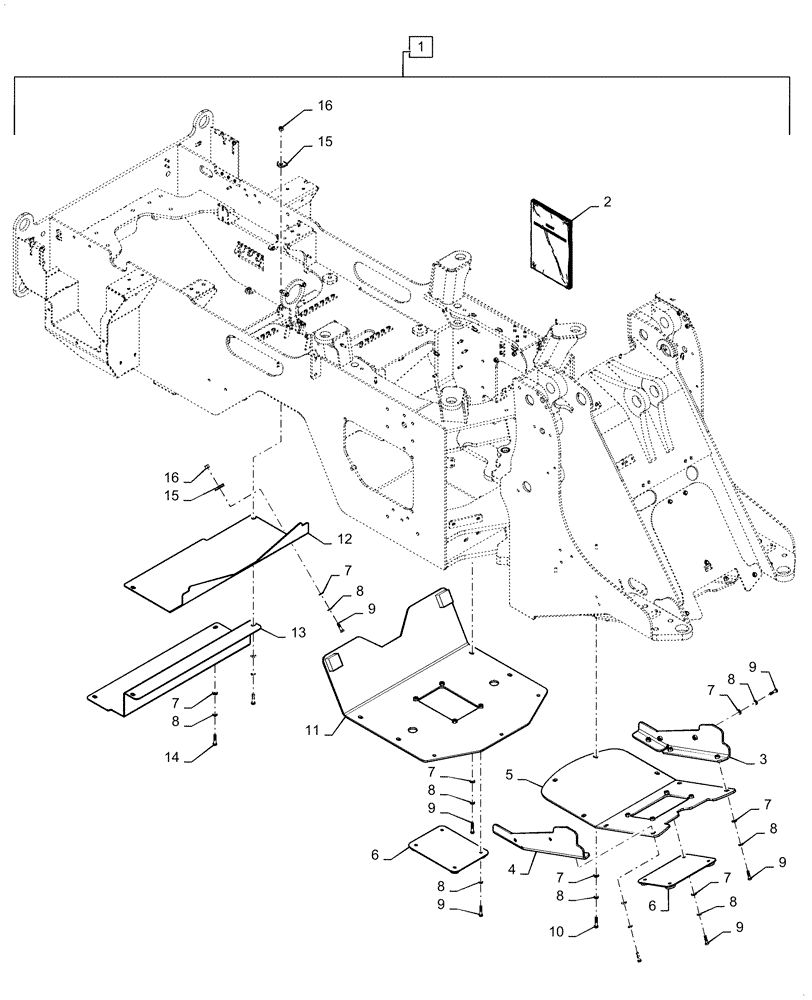

Схема запчастей Case 621F - (88.100.90[03]) - DIA KIT SKID AND FUEL TANK GUARDS (88) - ACCESSORIES
7
9
9
9
10
7
8
8
8
8
13
1
7
7
7
9
9
7
3
15
8
12
7
16
15
14
11
5
2
6
6
9
8
4
16
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47661253

KIT

Kit Includes 2 - 16

1шт.

2

47661255

INSTRUCTION

1шт.

3

47400180

GUARD

Belly LH

1шт.

4

47400184

GUARD

Belly RH

1шт.

5

47407575

PLATE

Front Skid

1шт.

6

47400206

GUARD

Access

2шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

29шт.

8

892-11012

LOCK WASHER,M12

33шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

27шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

11

47400234

PROTECTION PLATE

Trans Skid

1шт.

12

47382615

GUARD

Rear Belly

1шт.

13

47382618

GUARD

Fuel Tank

1шт.

14

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

15

360476A1

BRACKET

Weldnut

4шт.

16

830-62012

NUT

Heavy Weld, M12

4шт.
