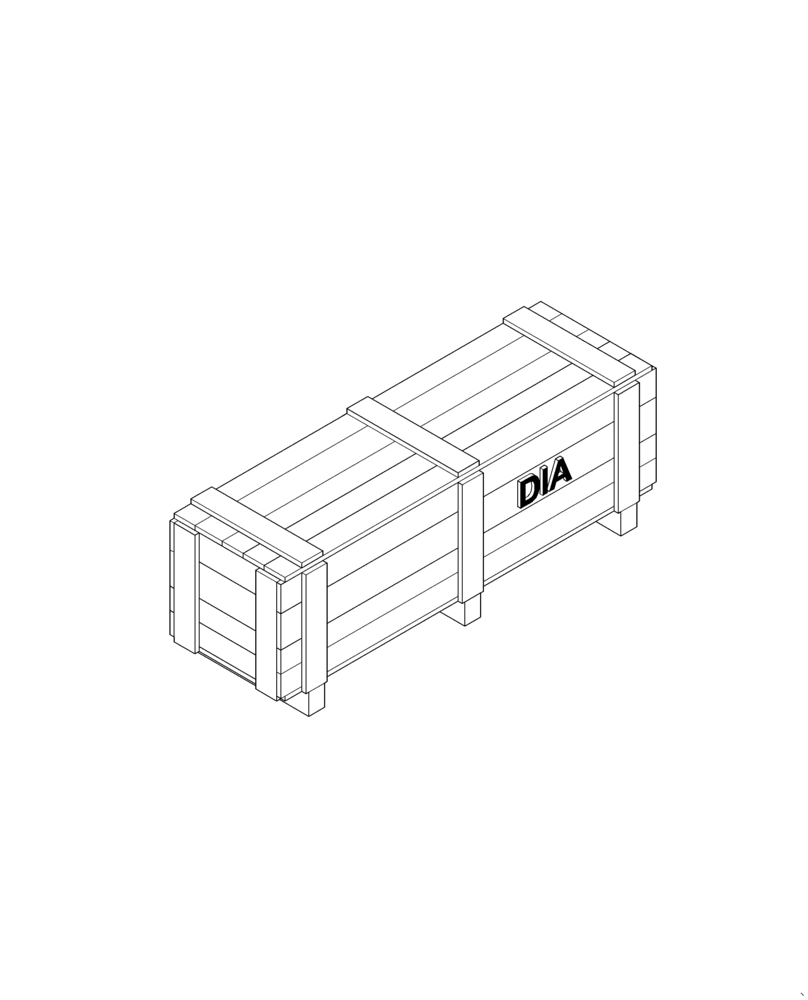

Запчасти Case 621F (88.100.90[02]) - DIA KIT SKID PLATE (88) - ACCESSORIES

1

472108151

DIA KIT, ADD PROD

DIA Kit Skid Plate, Incl 2 - 10

1шт.

2

84484013

INSTRUCTION

1шт.

3

87598264

SKID PLATE

1шт.

4

87598267

COVER

Transmission Drain

1шт.

5

87597594

SKID PLATE

Front

1шт.

6

87597597

SKID PLATE

Left Skid

1шт.

7

87597598

SKID PLATE

Right Skid

1шт.

8

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

21шт.

9

892-11012

LOCK WASHER,M12

21шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

17шт.
