(88.100.35[06]) - DIA KIT LINE LIFT/TILT, Z-BAR & XR

Запчасти Case 621F (88.100.35[06]) - DIA KIT LINE LIFT/TILT, Z-BAR & XR (88) - ACCESSORIES

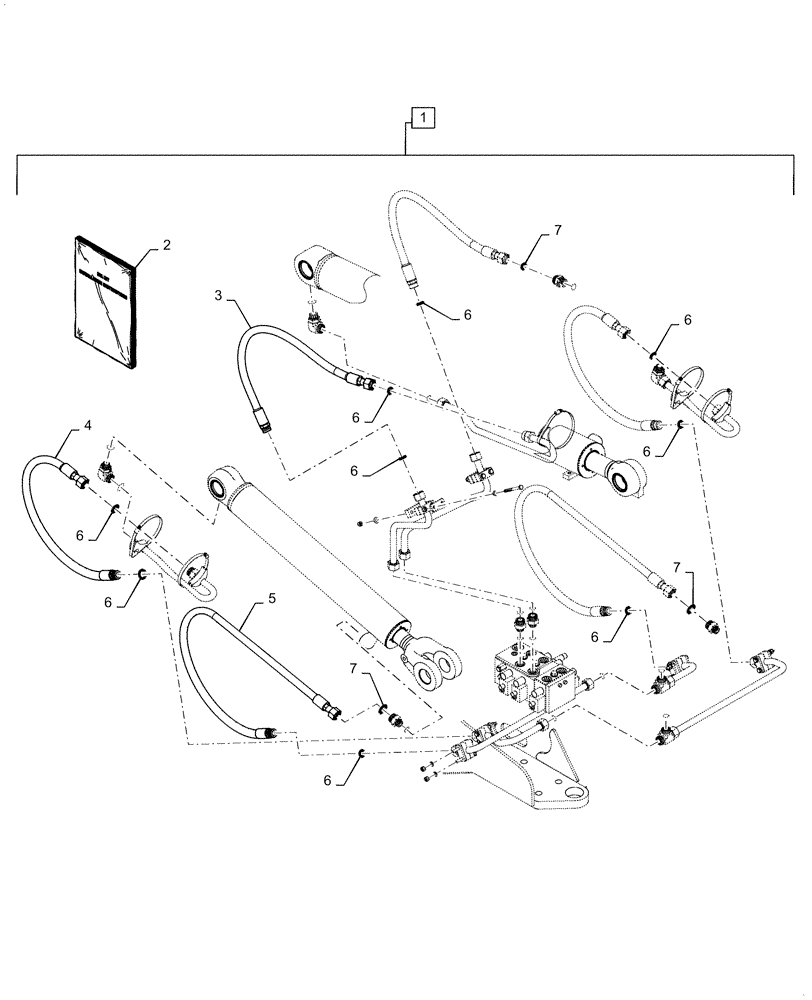

Схема запчастей Case 621F - (88.100.35[06]) - DIA KIT LINE LIFT/TILT, Z-BAR & XR (88) - ACCESSORIES
6
6
6
7
6
6
6
6
6
6
7
1
7
3
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47477432

KIT

DIA Kit, Line Lift & Tilt, Z-Bar & XR, Incl 2 - 7

1шт.

2

47477434

INSTRUCTION

1шт.

3

47407592

HOSE,19.05mm ID x 1161mm L, SAE 100R12

Tilt Cylinder

2шт.

4

47407590

HOSE,19.05mm ID x 1145mm L, SAE 100R12

Lift

2шт.

5

47407591

HOSE,19.05mm ID x 1760mm L, SAE 100R12

Lift Z-Bar

2шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

9шт.

7

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

3шт.
