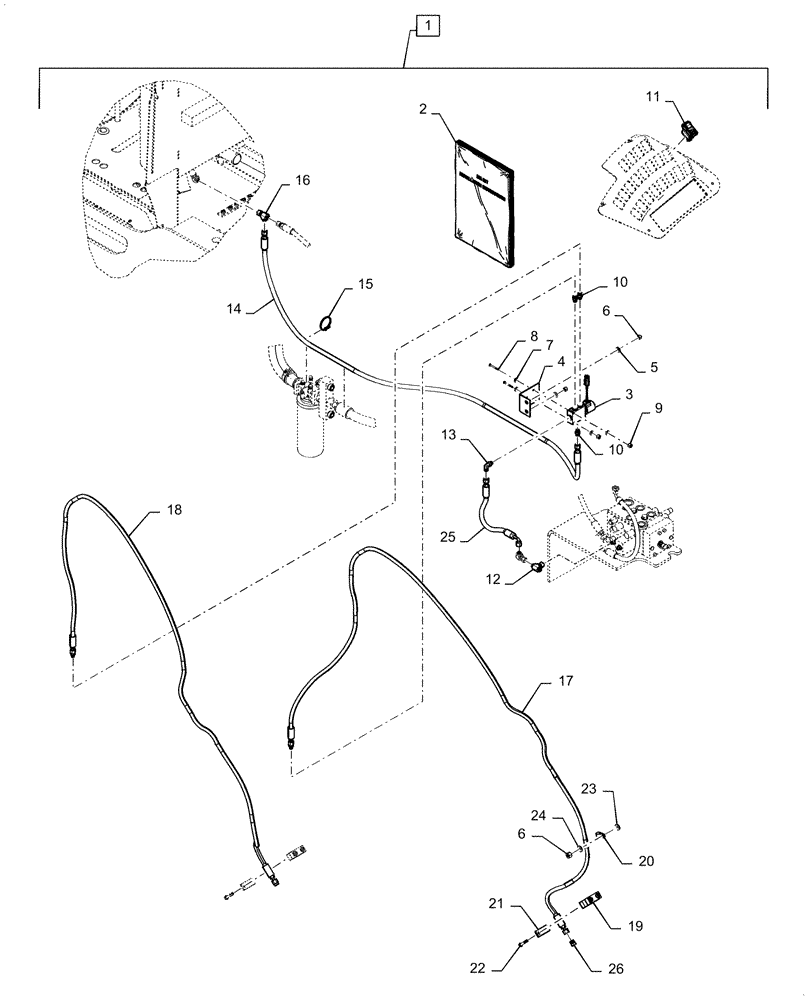

Запчасти Case 621F (88.100.35[05]) - DIA KIT LOCKING HYDRAULICS XT (88) - ACCESSORIES

1

47616873

KIT

DIA Kit Locking Hydraulics XT, Incl 2 - 26

1шт.

2

47616871

INSTRUCTION

Instruction Sheet

1шт.

3

84139102

SOLENOID VALVE

1шт.

4

87404018

BRACKET

Coupler Solenoid

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

8

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

9

832-10406

NUT,M6 x 1, Cl 8

2шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

3шт.

11

364444A2

SWITCH

Pin Engage

1шт.

12

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

13

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

14

87581937

HYDRAULIC HOSE,9.52 mm ID x 2558.00 mm, SAE 100R1

Coupler Tank

1шт.

15

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

10шт.

16

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

17

87448666

HOSE ASSY.

Coupler Left

1шт.

18

87448665

HOSE ASSY.

Coupler Right

1шт.

19

379374A1

BLOCK

Tube Mounting

2шт.

20

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

8шт.

21

367658A1

PLATE

Clamp Cover

2шт.

22

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.

23

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

25

393126A1

HOSE ASSY.

Coupler Pressure

1шт.

26

701-911

PLUG,Hex, 11/16" - 16 ORFS

2шт.
