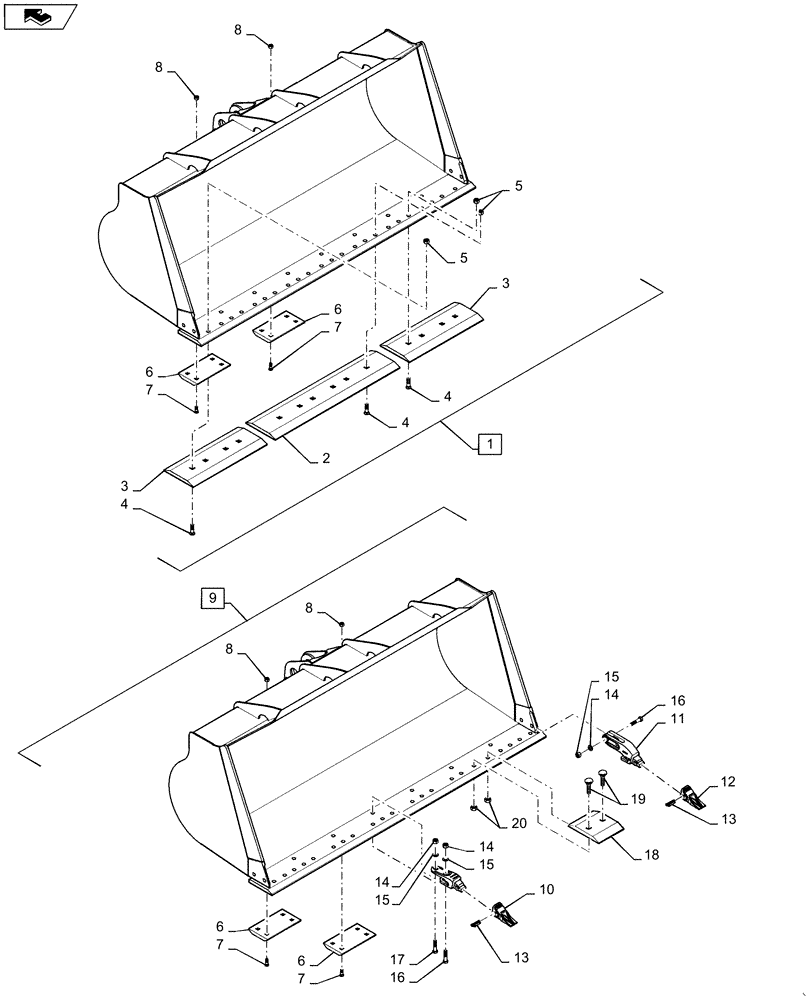

Запчасти Case 621F (82.300.AN[01]) - BUCKET, 2.75 CU YD (82) - FRONT LOADER & BUCKET

1

84294115

BUCKET

2.75 Cu Yard Bucket With Bolt On Edge, Incl 2 - 8

1шт.

2

372081A1

CUTTING EDGE,Bolt On, Double Edged, 6 Hole, 254mm W x 1324mm L

Center Bolt On

1шт.

3

372082A2

EDGE, CUTTING

Outer Bolt On

2шт.

4

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

Used With 2, 3

16шт.

5

425-1612

NUT,3/4"-10, G5, Hvy

Used With 2, 3

16шт.

6

360939A1

PLATE

Bolt On Skid

2шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

Used With 6

8шт.

8

425-1612

NUT,3/4"-10, G5, Hvy

Used With 6

8шт.

9

84294118

BUCKET

2.75 Cu Yard Bucket With Bolt On Teeth, Incl 6 - 8 And 10 - 20

1шт.

10

84168133

BUCKET TOOTH SHANK

Adapter Bolt On Center

6шт.

11

84168129

BUCKET TOOTH SHANK

Adapter Bolt On Corner

2шт.

12

84168130

BUCKET TOOTH POINT

8шт.

13

84168132

BUCKET TOOTH KEY

8шт.

14

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

16шт.

15

425-1612

NUT,3/4"-10, G5, Hvy

16шт.

16

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

10шт.

17

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

6шт.

18

86992661

CUTTING EDGE

Used Between Teeth

8шт.

19

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

16шт.

20

425-1612

NUT,3/4"-10, G5, Hvy

16шт.
