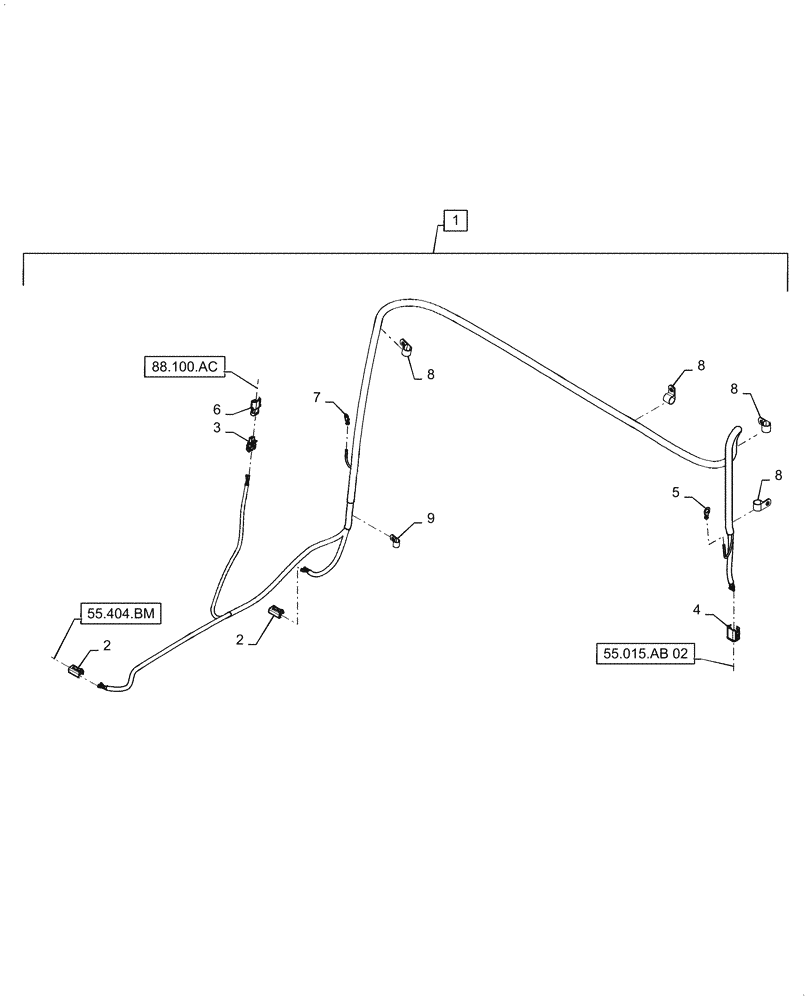

Запчасти Case 621F (55.990.AC) - HOOD WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47534226

WIRE HARNESS

Hood, Incl 2 - 9

1шт.

2

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

From LH, Rear Combination Light to Ultrasonic

2шт.

2

225241C1

SOCKET

Pin, From LH, Rear Combination Light to Ultrasonic

8шт.

2

225327C1

WEDGE,Lock, Black

LH, From LH, Rear Combination Light to Ultrasonic

2шт.

3

245482C1

ELEC CONNECTOR,2 Pin

License Plate Light to Ultrasonic

1шт.

3

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

License Plate Light to Ultrasonic

2шт.

3

225125C1

SEAL

License Plate Light to Ultrasonic

1шт.

4

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

Hood to Engine

1шт.

4

225321C1

WEDGE

Hood to Engine

1шт.

4

225241C1

SOCKET

Pin, Hood to Engine

8шт.

5

1964718C1

TERMINAL CONNECTOR

Ground on Cooling Box

1шт.

6

245483C1

ELEC CONNECTOR,Male, 2 Pin

License Plate Light to Ultrasonic

1шт.

6

225119C1

TERMINAL

License Plate Light to Ultrasonic

2шт.

6

225125C1

SEAL

License Plate Light to Ultrasonic

1шт.

7

1964716C1

TERMINAL CONNECTOR

Ground on Rear Grill

1шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

4шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.
