Запчасти Case 621F (55.524.AO[01]) - 2 CONTROL VALVES LEVER, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

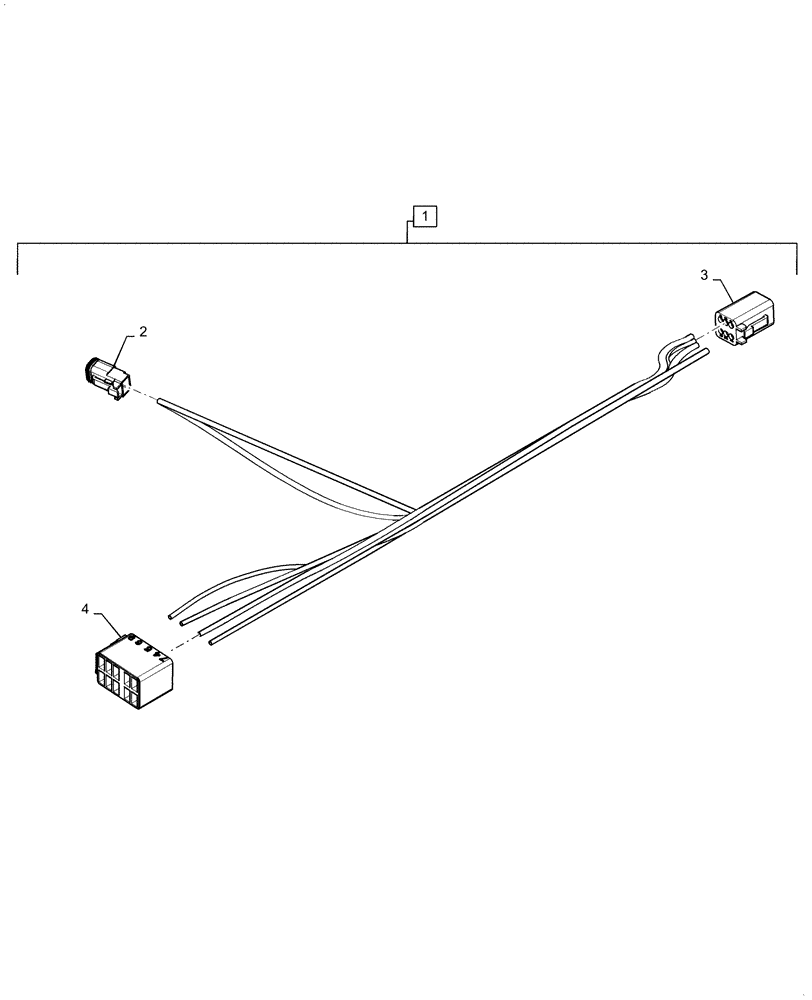

Схема запчастей Case 621F - (55.524.AO[01]) - 2 CONTROL VALVES LEVER, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
3
4
1
2

Артикул

Название

Примечание

Количество

1

87324389

WIRE HARNESS

Two Lever Control, Incl 2 - 4

1шт.

2

225316C1

ELEC CONNECTOR,Female, 2 Pin

Transmission Kick Down

1шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

2шт.

2

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

3

225351C1

ELEC CONNECTOR,Female, 6 Pin

Main Cab

1шт.

3

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

6шт.

3

87694150

LOCKING TAB,Wedge Lock

1шт.

4

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

FNR Switch

1шт.

4

87697756

TERMINAL

10шт.

Выбрано товаров: 9
