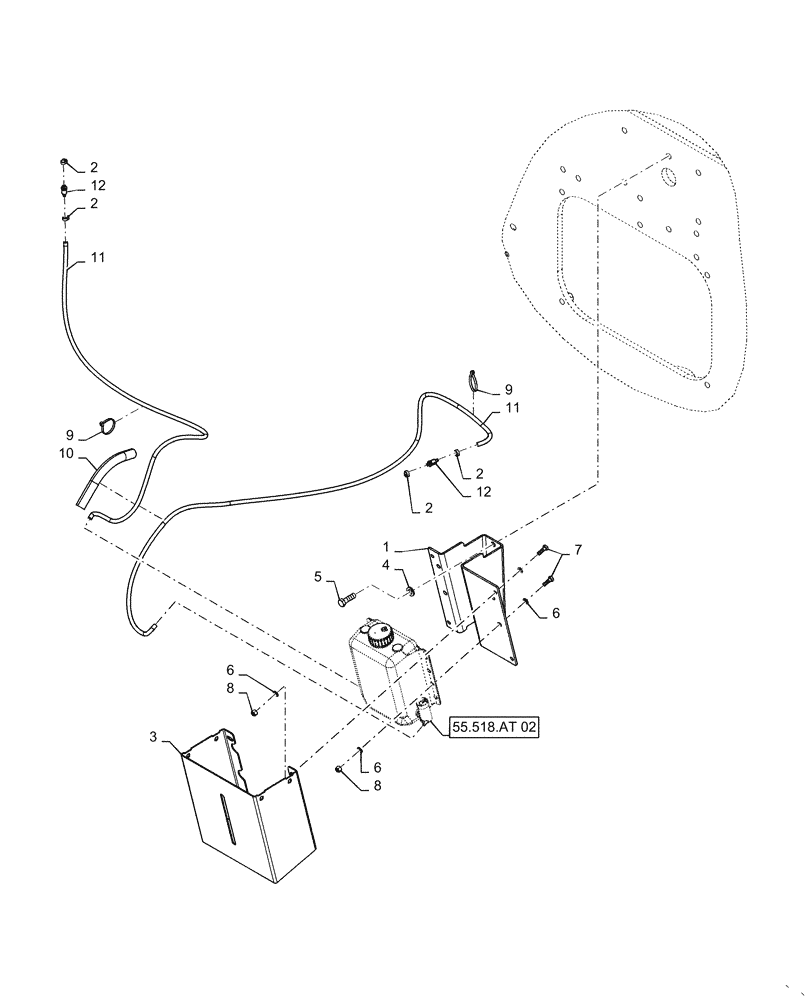

Запчасти Case 621F (55.518.AT[01]) - WASHER BOTTLE INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47407570

BRACKET

Washer Bottle

1шт.

1

47410951

BRACKET

Washer Bottle

1шт.

2

84477330

HOSE CLAMP,8.97mm - 10.11mm

See Figure 55.518.AT (02)

4шт.

3

47407568

COVER

Washer Bottle

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

10

84228376

CONDUIT

Protective Sleeve

1шт.

11

324468A1

HOSE

65"

2шт.

12

84037530

VALVE

Rear Wiper Hoses

2шт.
