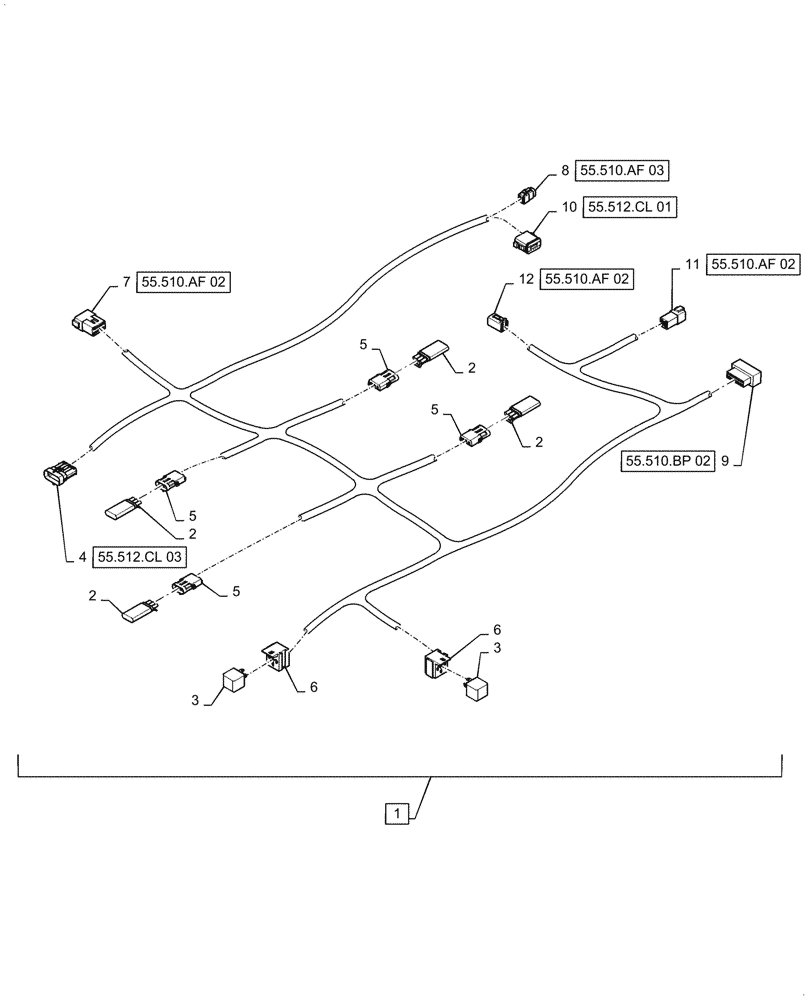

Запчасти Case 621F (55.512.CL[04]) - JOYSTICK STEERING HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

84152428

WIRE HARNESS

Incl 2 - 12

1шт.

2

A187874

MODULE

Diode

4шт.

3

326845A1

RELAY,24V

2шт.

4

256354A1

CONNECTOR, ELEC

FNR console

1шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

Diode Assembly

4шт.

5

87692856

CABLE TERMINAL

3шт.

6

245731C1

CONNECTOR, ELEC

5 Cavity Mini-relay Plug

2шт.

7

225388C1

ELEC CONNECTOR,Male, 12 Pin

Cab to Arm

1шт.

7

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

12шт.

7

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock

1шт.

8

280451A1

CONNECTOR,ELECTRIC

Main Cab

1шт.

9

84364746

ELEC CONNECTOR

16 Way Receptacle

1шт.

9

87679949

TERMINAL CONNECTOR

16шт.

10

225402C1

CONNECTOR, ELEC

Cab to Armrest

1шт.

10

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

12шт.

10

87695651

LOCKING TAB,Wedge Lock

1шт.

11

225350C1

ELEC CONNECTOR,Male, 6 Pin

Main Cab

1шт.

11

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

6шт.

11

87694147

WEDGE,Locking, Green

1шт.

12

225351C1

ELEC CONNECTOR,Female, 6 Pin

Main Cab

1шт.

12

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

6шт.

12

87694150

LOCKING TAB,Wedge Lock

1шт.
