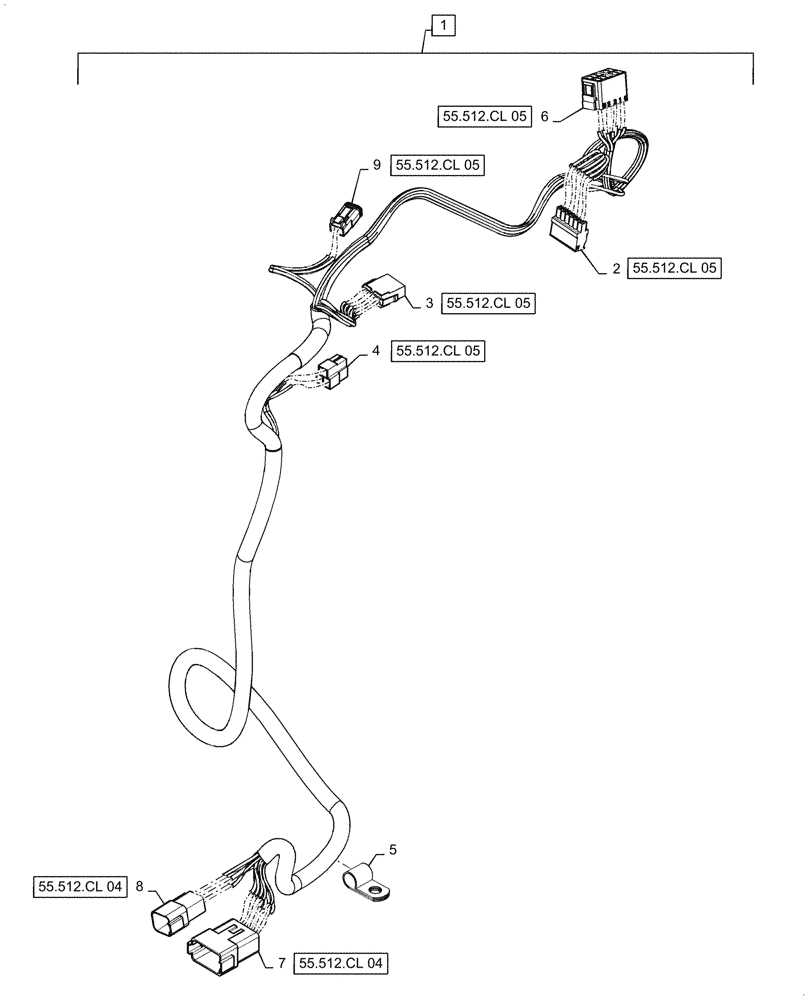

Запчасти Case 621F (55.512.CL[01]) - JOYSTICK STEERING HARNESS ASSEMBLY, ARMREST (55) - ELECTRICAL SYSTEMS

1

84185130

WIRE HARNESS

Joystick Steering, Incl 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

Phoenix Contact, Incl in 1

1шт.

3

87635073

CONTACT HOUSING,Female, 10 Pole

JSS Can Mod

1шт.

4

225259C1

CONNECTOR, ELEC

Arm Position

1шт.

4

87708753

TERMINAL

3шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

6

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

Fnr Reverse Switch

1шт.

6

87697756

TERMINAL

10шт.

7

225400C1

CONNECTOR, ELEC

Armrest to Cab

1шт.

7

87697947

ELEC. TERMINAL PIN,Nickel, 0.50 - 1.00mm

12шт.

7

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock

1шт.

8

280453A1

ELEC CONNECTOR,Male, 6 Pin

6-Cavity Receptacle

1шт.

9

225316C1

ELEC CONNECTOR,Female, 2 Pin

Trans Kick Down

1шт.

9

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

2шт.

9

84074638

LOCKING TAB,Locking Wedge, Green

1шт.
