Запчасти Case 621F (55.510.BP[01]) - CAB BOTTOM HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

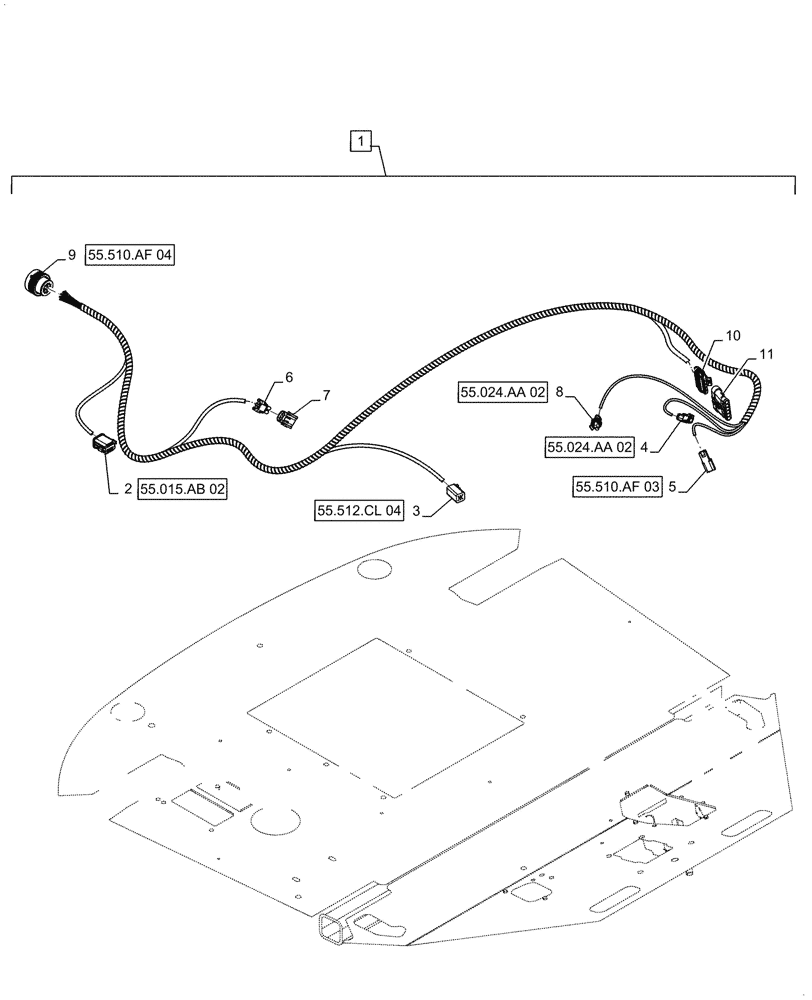

Схема запчастей Case 621F - (55.510.BP[01]) - CAB BOTTOM HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
55.512.cl 04
10
8
5
4
3
6
7
11
9
2
1
55.024.aa 02
55.024.aa 02
55.510.af 03
55.510.af 04
55.015.ab 02

Артикул

Название

Примечание

Количество

1

84328066

HARNESS

Cab Bottom Incl 2 - 11

1шт.

2

225408C1

CONNECTOR, ELEC

Cab Bottom

1шт.

2

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

8шт.

2

84806312

LOCKING TAB,Wedge Lock

1шт.

3

225351C1

ELEC CONNECTOR,Female, 6 Pin

Throttle

1шт.

3

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

6шт.

3

87694150

LOCKING TAB,Wedge Lock

1шт.

4

225316C1

ELEC CONNECTOR,Female, 2 Pin

Brake Solenoid

1шт.

4

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

2шт.

4

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

5

222136A1

ELEC CONNECTOR,Male, 2 Pin

Brake Light Pressure Switch

1шт.

5

87697946

CONNECTOR, ELEC

2шт.

5

87696585

LOCKING TAB,Wedge Lock, 2-Pin

1шт.

6

245482C1

ELEC CONNECTOR,2 Pin

Low AC Pressure Switch

1шт.

6

87692880

CABLE TERMINAL

2шт.

7

245483C1

ELEC CONNECTOR,Male, 2 Pin

2-Cavity Recepticle

1шт.

7

87692856

CABLE TERMINAL

2шт.

8

371614A1

ELEC CONNECTOR,Female, 2 Pin

Brake Warning Pressure Switch

1шт.

8

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

9

87703931

ELEC CONNECTOR

Cab Bottom Bulkhead

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

14шт.

10

87710588

ELEC CONNECTOR

Brake Pedal Position

1шт.

10

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

6шт.

11

87691968

ELEC CONNECTOR,Female, 6 Cavities

1.5 Amp 6-Way Tab

1шт.

11

87680675

TERMINAL

6шт.

Выбрано товаров: 25
