(55.510.AF[04]) - CAB MAIN WIRE HARNESS ASSEMBLY

Запчасти Case 621F (55.510.AF[04]) - CAB MAIN WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

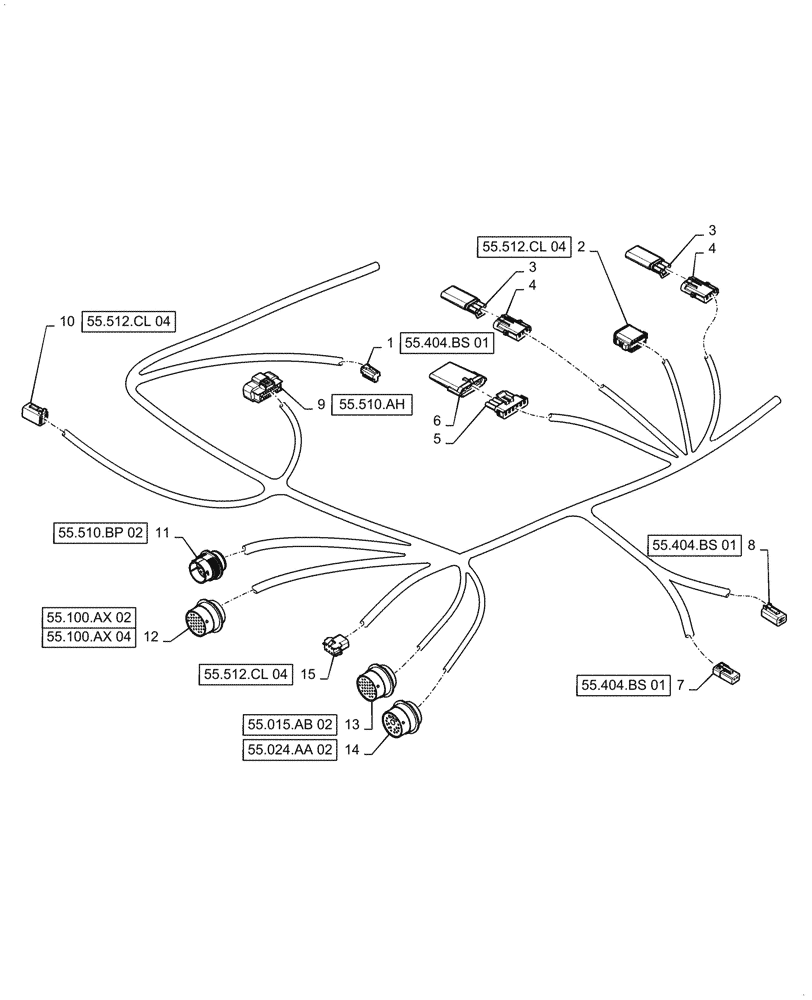

Схема запчастей Case 621F - (55.510.AF[04]) - CAB MAIN WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
55.510.ah
1
4
9
7
3
10
8
3
11
5
15
13
6
12
4
14
2
55.015.ab 02
55.024.aa 02
55.404.bs 01
55.404.bs 01
55.404.bs 01
55.512.cl 04
55.512.cl 04
55.512.cl 04
55.510.bp 02
55.100.ax 04
55.100.ax 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84398827

WIRE CONNECTOR

3 Cavity

2шт.

2

225389C1

CONNECTOR, ELEC

12 Cavity

1шт.

3

A187874

MODULE

Diode

1шт.

4

245485C1

ELEC CONNECTOR,Male, 3 Pin

2шт.

5

245488C1

ELEC CONNECTOR,6 Pin

1шт.

6

A187813

DIODE

Diode

1шт.

7

87552622

ELEC CONNECTOR

2 Pin

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

9

388710A1

CONNECTOR, ELEC

1шт.

10

225351C1

ELEC CONNECTOR,Female, 6 Pin

1шт.

11

87703902

ELEC CONNECTOR

1шт.

12

380839A1

ELEC CONNECTOR,Female, 31 Pin

1шт.

13

291661A1

CONNECTOR, ELEC

31 Cavity Receptacle

1шт.

14

319184A1

CONNECTOR, ELEC

18 Cavity Receptacle

1шт.

15

291663A1

CONNECTOR, ELEC

1шт.
