Запчасти Case 621F (55.510.AF[01]) - CAB MAIN WIRE HARNESS FUSE AND RELAYS (55) - ELECTRICAL SYSTEMS

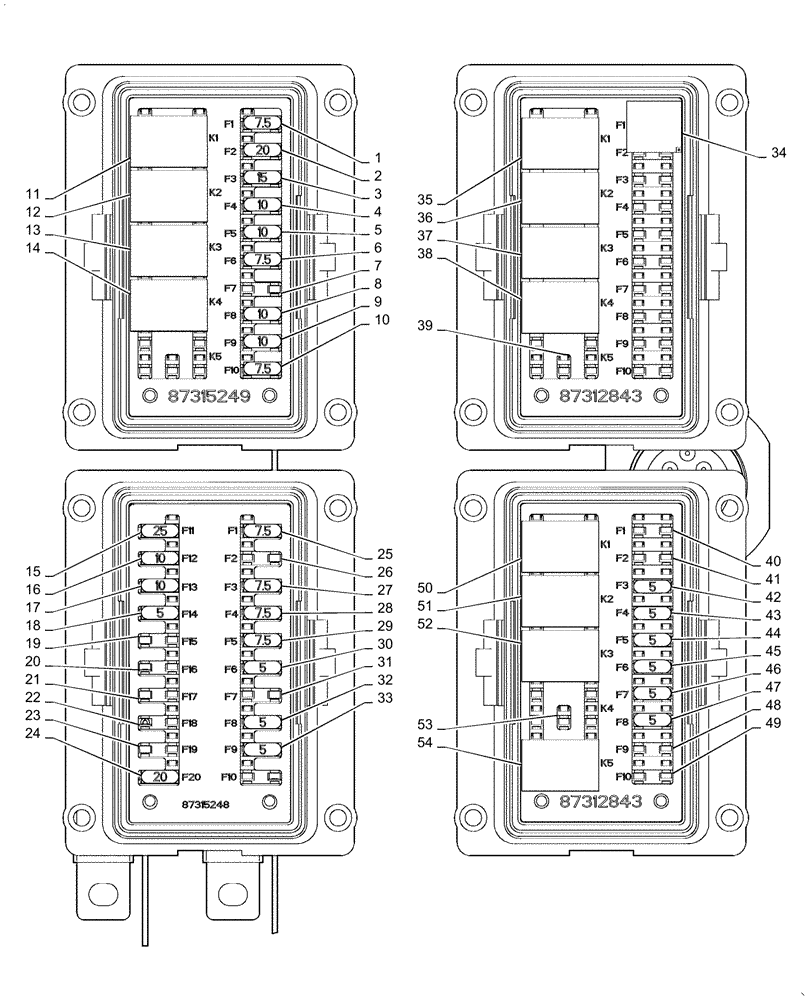

Схема запчастей Case 621F - (55.510.AF[01]) - CAB MAIN WIRE HARNESS FUSE AND RELAYS (55) - ELECTRICAL SYSTEMS
8
39
22
18
53
34
45
44
46
43
4
28
15
5
14
6
37
48
23
54
42
20
19
1
27
52
49
47
13
33
26
29
32
38
25
30
21
24
16
50
2
17
9
40
51
10
11
12
31
41
36
3
7
35

Артикул

Название

Примечание

Количество

1

121411A1

FUSE,7.5A, Mini, Brown

F1, Beacon / Dome Light

1шт.

2

121414A1

FUSE,20A, Mini, Yellow

F2, Work Light Switch

1шт.

3

121410A1

FUSE,5A, Mini, Tan

F3, Driving Light Switch

1шт.

4

87312626

RELAY,24V

F4, Break Lights / Flasher

1шт.

5

121411A1

FUSE,7.5A, Mini, Brown

F5, Key Switch Power

1шт.

6

121414A1

FUSE,20A, Mini, Yellow

F6, Horn

1шт.

7

121411A1

FUSE,7.5A, Mini, Brown

F7, Secondary Steering

1шт.

8

121412A1

FUSE,10A, Mini, Red

F8, AIC Power

1шт.

9

121412A1

FUSE,10A, Mini, Red

F9, Diagnostic Plug

1шт.

10

121411A1

FUSE,7.5A, Mini, Brown

F10, Transmission ECU

1шт.

11

87312626

RELAY,24V

K1, Break Lights

1шт.

12

87312626

RELAY,24V

K2, Ignition Power Control

1шт.

13

87312626

RELAY,24V

K3, Work Lights

1шт.

14

87312626

RELAY,24V

K4, Horn

1шт.

15

121415A1

FUSE,25A, Mini, Clear

F11, Blower Motor

1шт.

16

121412A1

FUSE,10A, Mini, Red

F12, Front Wiper / Washer

1шт.

17

121412A1

FUSE,10A, Mini, Red

F13, Rear Wiper / Washer

1шт.

18

121410A1

FUSE,5A, Mini, Tan

F14, Back Up Alarm and Lights

1шт.

19

121411A1

FUSE,7.5A, Mini, Brown

F15, Heated Mirror

1шт.

20

121413A1

FUSE,15A, Mini, Blue

F16, Seat Compressor

1шт.

21

87327335

FUSE,20 Amp

F17, Secondary Steering ACC

1шт.

22

121410A1

FUSE,5A, Mini, Tan

F18, Cigar Lighter

1шт.

23

121410A1

FUSE,5A, Mini, Tan

F19, Camera

1шт.

24

121414A1

FUSE,20A, Mini, Yellow

F20, Power Converter

1шт.

25

121411A1

FUSE,7.5A, Mini, Brown

F1, Transmission

1шт.

26

121412A1

FUSE,10A, Mini, Red

F2, Joystick Steering

1шт.

27

121411A1

FUSE,7.5A, Mini, Brown

F3, AIC Power

1шт.

28

121411A1

FUSE,7.5A, Mini, Brown

F4, Secondary Steering

1шт.

29

121411A1

FUSE,7.5A, Mini, Brown

F5, Pilot / Ride Control Solenoid

1шт.

30

121410A1

FUSE,5A, Mini, Tan

F6, Park Break Solenoid

1шт.

31

121411A1

FUSE,7.5A, Mini, Brown

F7, Pin Engage, Fan Reverse

1шт.

32

121410A1

FUSE,5A, Mini, Tan

F8, Turn Signal

1шт.

33

121410A1

FUSE,5A, Mini, Tan

F9, Engine Controler Ignition Power

1шт.

34

87318986

RELAY,4 Pin, 24V

F1, F2, Back Up Alarm

1шт.

35

87312626

RELAY,24V

K1, Front Wiper, High Speed

1шт.

36

87312626

RELAY,24V

K2, Front Wiper, Low Speed

1шт.

37

87312626

RELAY,24V

k3, Pilot Control

1шт.

38

87312626

RELAY,24V

K4, Ride Control

1шт.

39

87312626

RELAY,24V

K5, Air Conditioning

1шт.

40

121412A1

FUSE,10A, Mini, Red

F1, Remote 12V / 10A, Plug 1

1шт.

41

121412A1

FUSE,10A, Mini, Red

F2, Remote 12V / 10A, Plug 2

1шт.

42

121410A1

FUSE,5A, Mini, Tan

High Beam, Left

1шт.

43

121410A1

FUSE,5A, Mini, Tan

High Beam, Right

1шт.

44

121410A1

FUSE,5A, Mini, Tan

Low Beam, Right

1шт.

45

121410A1

FUSE,5A, Mini, Tan

Low Beam, Left

1шт.

46

121410A1

FUSE,5A, Mini, Tan

Tail Light, Left

1шт.

47

121410A1

FUSE,5A, Mini, Tan

Tail / License, Right

1шт.

48

121412A1

FUSE,10A, Mini, Red

Radio, 12V

1шт.

49

121413A1

FUSE,15A, Mini, Blue

Two Way Radio (Optional)

1шт.

50

87312626

RELAY,24V

K1, Ignition Power Latch

1шт.

51

87312626

RELAY,24V

K2, Netural Start

1шт.

52

87312626

RELAY,24V

K3, Wiper Cutout

1шт.

53

87312626

RELAY,24V

K4, Fan Reverser

1шт.

54

87312626

RELAY,24V

5K, Parking Brake

1шт.

55

84379839

FOAM

Not Illustrated, To be Used Inside Cover to Secure Item 3, Start Serial: NGF235421

3шт.

Выбрано товаров: 55
