(55.415.AB[02]) - BUCKET HEIGHT AND RETURN TO TRANSPORT CONTROL, XR/LR

Запчасти Case 621F (55.415.AB[02]) - BUCKET HEIGHT AND RETURN TO TRANSPORT CONTROL, XR/LR (55) - ELECTRICAL SYSTEMS

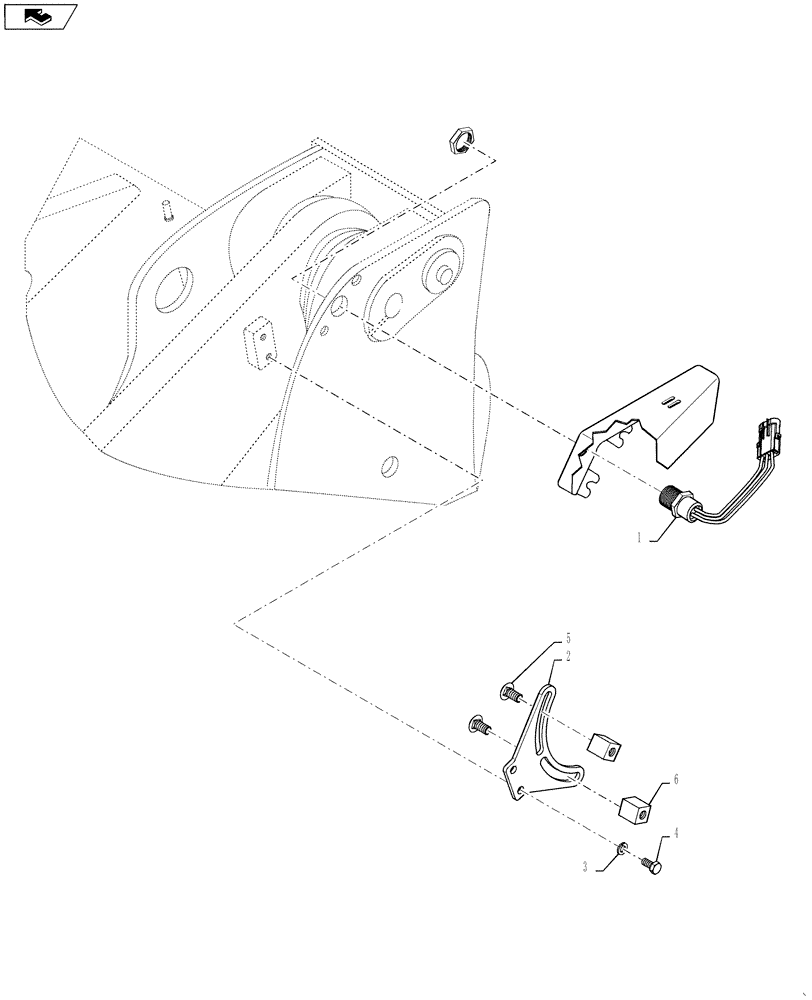

Схема запчастей Case 621F - (55.415.AB[02]) - BUCKET HEIGHT AND RETURN TO TRANSPORT CONTROL, XR/LR (55) - ELECTRICAL SYSTEMS
1
3
2
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1546498C1

SWITCH

Proximity

1шт.

2

379149A2

MOUNTING PLATE

Target Mount

1шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

5

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

6

87437102

BLOCK

Proximity Switch

2шт.
