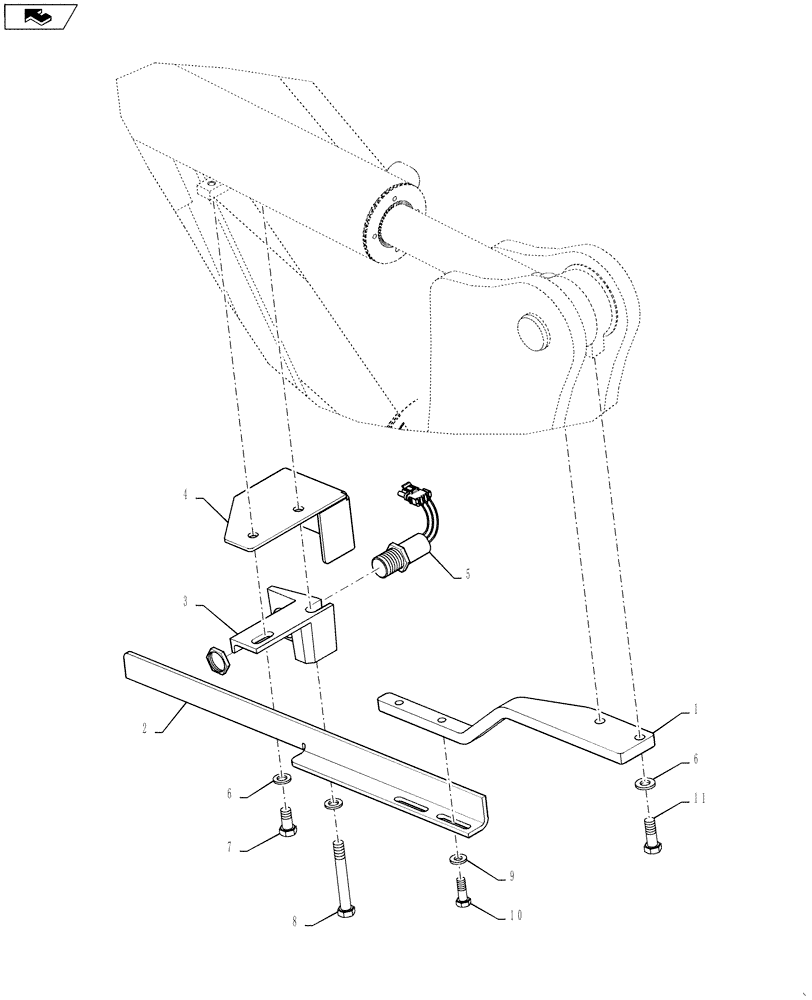

Запчасти Case 621F (55.415.AA[02]) - RETURN TO DIG CONTROL, XR/LR (55) - ELECTRICAL SYSTEMS

1

87403964

BRACKET

Return to Dig

1шт.

2

87403968

BRACKET

Target

1шт.

3

L125983

SUPPORT

Proximity Switch

1шт.

4

87403966

COVER

Proximity Switch

1шт.

5

1546497C1

SWITCH

Proximity

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

8

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

11

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.
