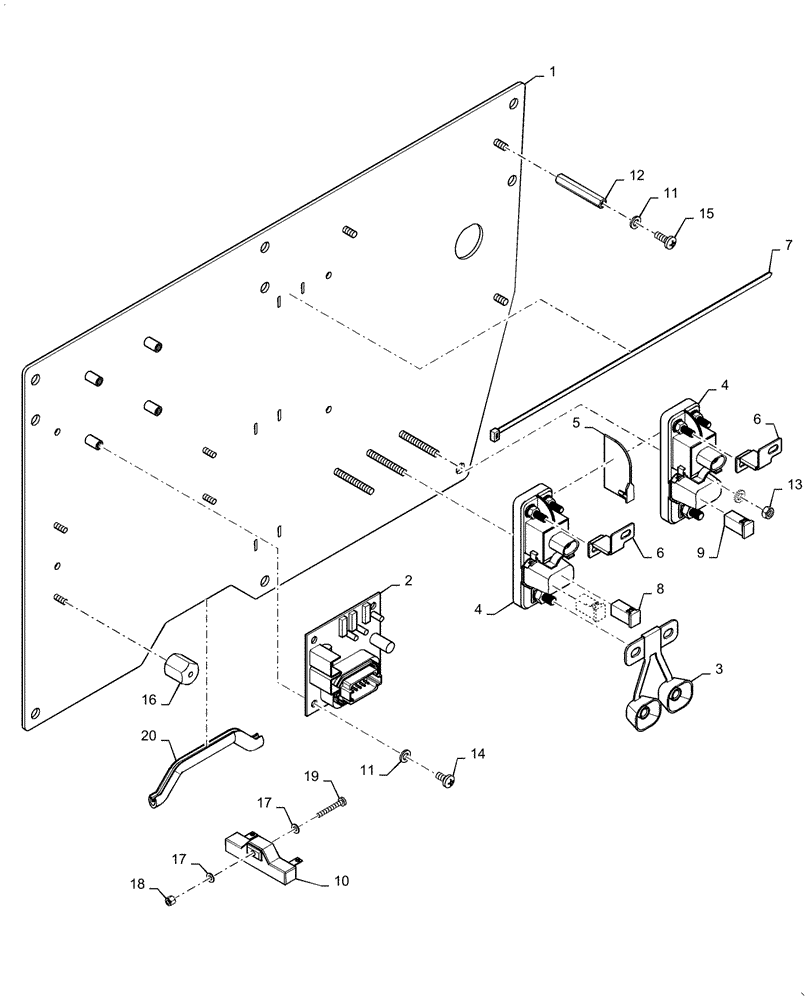

Запчасти Case 621F (55.404.BS[01]) - RIGHT CONSOLE FUSE AND RELAY INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47411616

PANEL

Electrical

1шт.

2

232364A1

FLASHER UNIT

Module

1шт.

3

84481316

RELAY SOCKET

PRM Input Bus Bar Assy

1шт.

4

87315250

MODULE

PRM, Single Power Relay

2шт.

5

87318617

JUNCTION BLOCK

Joiner PRM

1шт.

6

87318620

BAR

RTMR to PRM Bus Bar

2шт.

7

19-135

CABLE TIE

3шт.

8

87327335

FUSE,20 Amp

1шт.

9

87327346

FUSE,40A, Green

2шт.

10

F22316

RESISTOR,75 Ohms 0.2 Amps DC

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9шт.

12

87700052

BUSHING,Hex, M6 x 1 x 57mm L

Hexagonal

3шт.

13

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

14

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

4шт.

15

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

3шт.

16

87700053

BUSHING,Hex, M5 x 0.8 x 24mm L

Hexagonal

4шт.

17

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

18

832-10404

NUT,M4 x 0.7, Cl 8.8

1шт.

19

86511825

SCREW,Phillips Drive, Pan HD, M4 x 30mm, Cl 4.8

1шт.

20

87661964

GASKET

Plate Panel

1шт.
