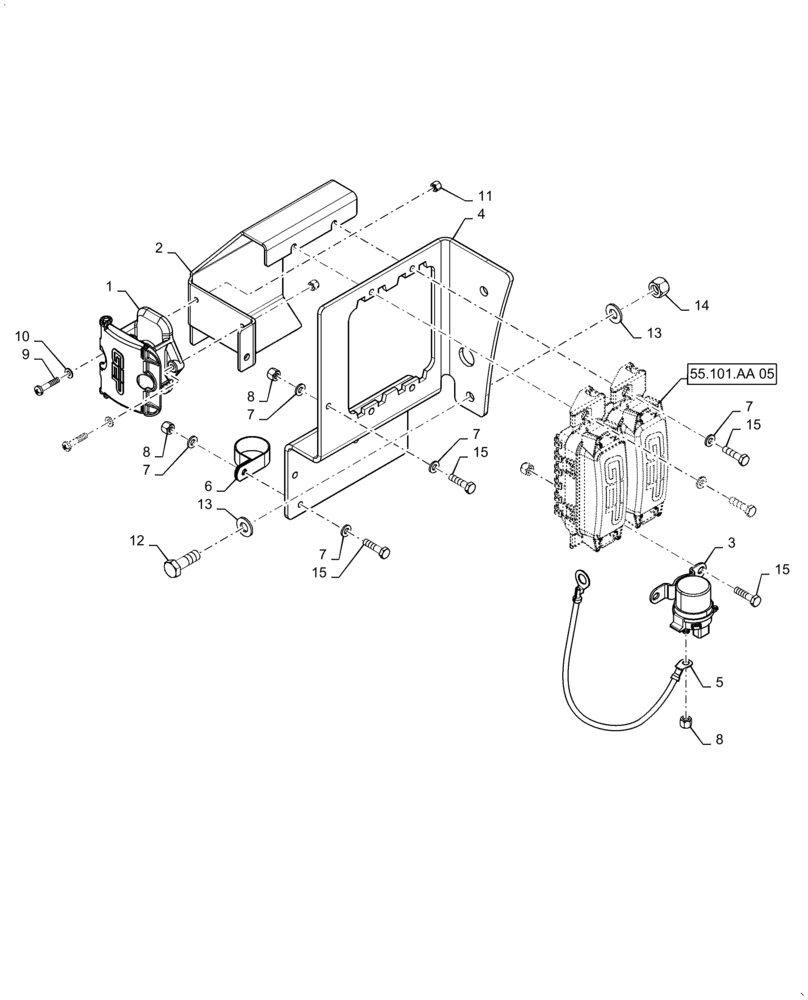

Запчасти Case 621F (55.101.AA[03]) - RELAY, FUSE BOX, HOLDER (55) - ELECTRICAL SYSTEMS

1

47410078

PROTECTOR

Power Connector Stud

1шт.

2

47601507

PLATE

Relay Cover, CNH Black

1шт.

3

87351908

SOLENOID SWITCH

Relay

1шт.

4

47643963

BRACKET

Relay, CNH Black

1шт.

5

47498377

CABLE

Starter Relay to Power Stud

1шт.

6

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

1шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

8

832-10406

NUT,M6 x 1, Cl 8

6шт.

9

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

2шт.

10

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

11

832-10405

NUT,M5 x .8, Cl 8

2шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

15

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.
