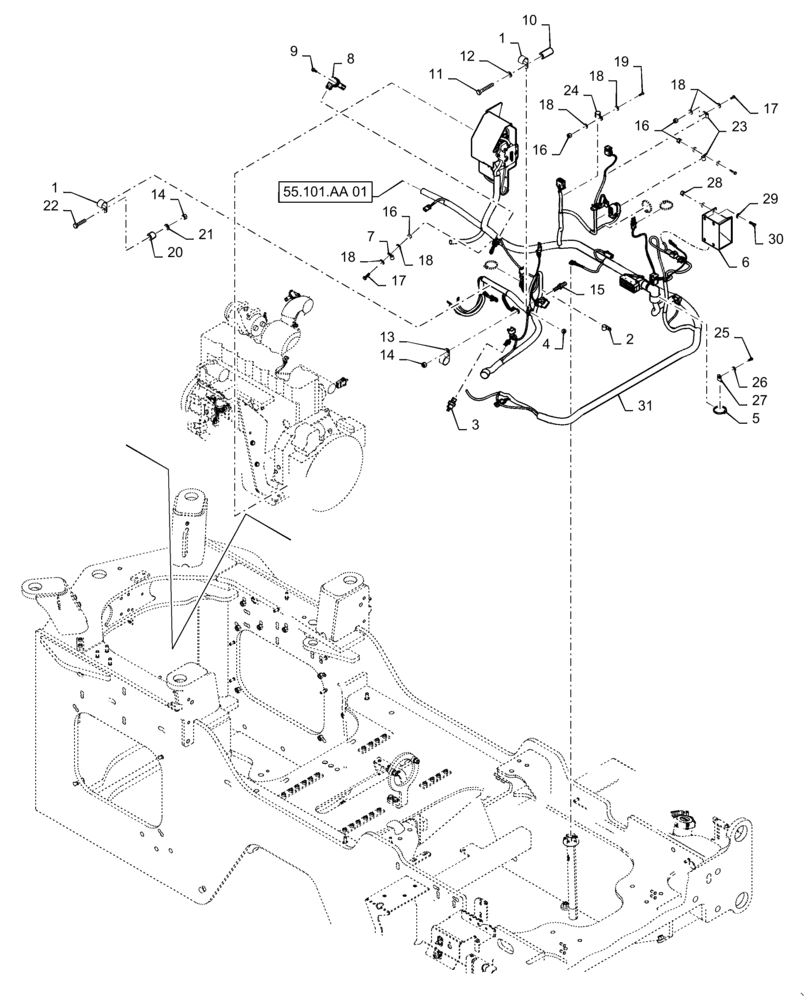

Запчасти Case 621F (55.101.AA[02]) - ENGINE AND REAR CHASSIS, HARNESS (55) - ELECTRICAL SYSTEMS

1

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

2шт.

2

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

3

321446A1

SENSOR

Engine Coolant

1шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

6

D121972

ALARM

Back-Up

1шт.

7

515-22111

CLAMP,7/16", Insul, 5/16" Bolt

1шт.

8

87482355

SENSOR

Humidity

1шт.

9

87695418

FLANGE BOLT,M6 x 1.0 x 16mm, Cl 10.9

2шт.

10

324441A1

SPACER,12.7mm ID x 25.4mm OD x 54mm L

1шт.

11

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

1шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

13

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

2шт.

14

L127555

NUT,Hex, 3/8" - 16

2шт.

15

L127553

STUD

2шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

19

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

20

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

1шт.

21

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

22

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

23

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

24

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

25

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

27

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

28

832-10406

NUT,M6 x 1, Cl 8

4шт.

29

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

30

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

31

47679709

WIRE HARNESS

Engine and Rear Chassis , Serial Range: -NFF232958

1шт.

31

47817429

WIRE HARNESS

, Start Serial: NFF232959

1шт.
