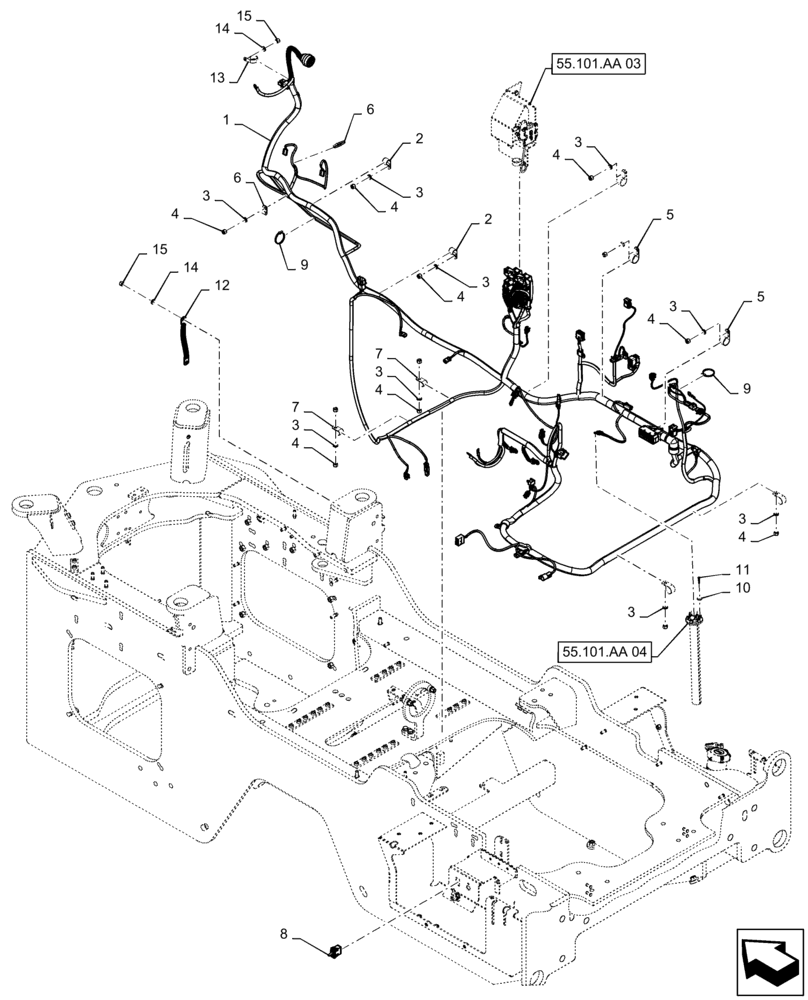

Запчасти Case 621F (55.101.AA[01]) - ENGINE AND REAR CHASSIS HARNESS (55) - ELECTRICAL SYSTEMS

1

47817429

WIRE HARNESS

Engine And Rear Chassis, Start Serial: NFF232959

1шт.

1

47679709

WIRE HARNESS

Engine And Rear Chassis, Serial Range: -NFF232958

1шт.

2

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

5

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

2шт.

6

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

7

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

8

87350087

SWITCH

Hood Lift, Serial Range: -NFF232958

1шт.

8

47750058

ROCKER SWITCH

, Start Serial: NFF232959

1шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

10

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

11

463-11016

SCREW,Hex Hd, #10-24 x 1"

5шт.

12

L126051

GROUND STRAP

Copper

1шт.

13

515-21302

CLAMP,1 3/16", Insul, 1/4" Bolt

1шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

15

253347A1

NUT,Hex, M10 x 1.5

2шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
