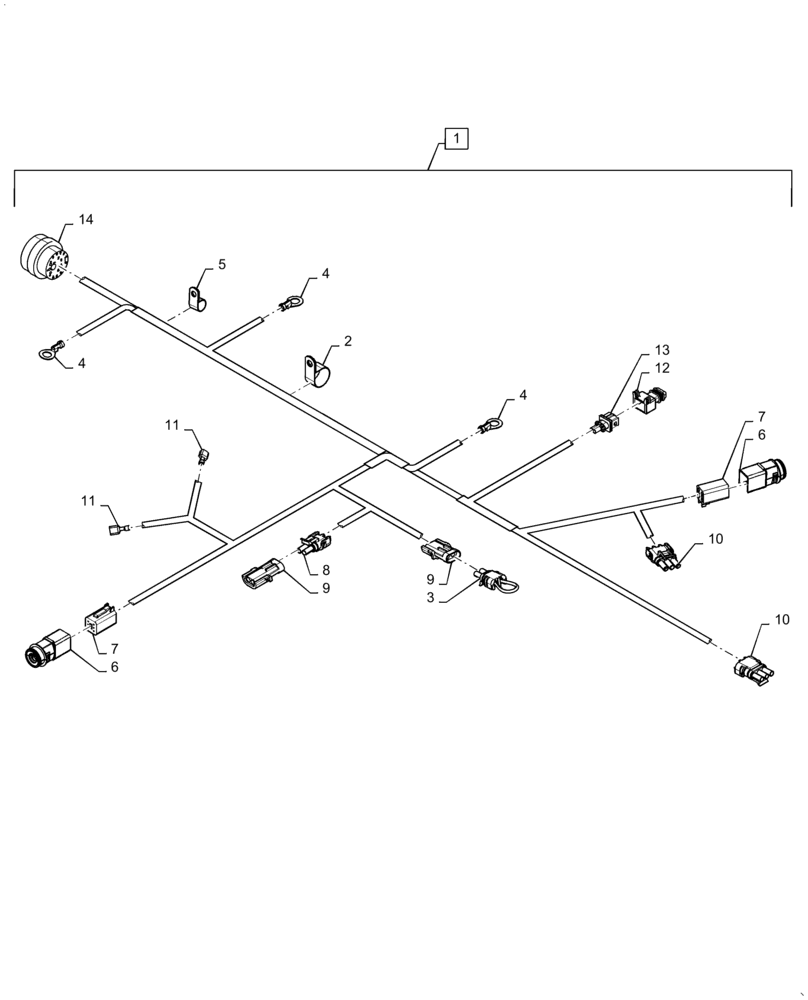

Запчасти Case 621F (55.100.AC[03]) - FRONT CHASSIS WIRE HARNESS ASSEMBLY, XT (55) - ELECTRICAL SYSTEMS

1

47434408

WIRE HARNESS

Front Chassis, XT Only, Incl 2 - 14

1шт.

2

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

2шт.

3

8602937

WIRE HARNESS

Harness Jumper Rollback

1шт.

4

1964718C1

TERMINAL CONNECTOR

Ring Terminal Stud

3шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

6

84253889

JUNCTION

6 Way Male Connector, Lights

2шт.

7

225351C1

ELEC CONNECTOR,Female, 6 Pin

Hedlight

2шт.

8

245482C1

ELEC CONNECTOR,2 Pin

Ride Control

1шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

Rollback Presure Switch

2шт.

10

245484C1

ELEC CONNECTOR,3 Pin

2шт.

11

282459A1

ELEC CONNECTOR,Female, 0.75 - 2 mm2

2шт.

12

291717A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

13

291718A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

14

319149A1

CONNECTOR, ELEC

18 Cavity Receptacle

1шт.
