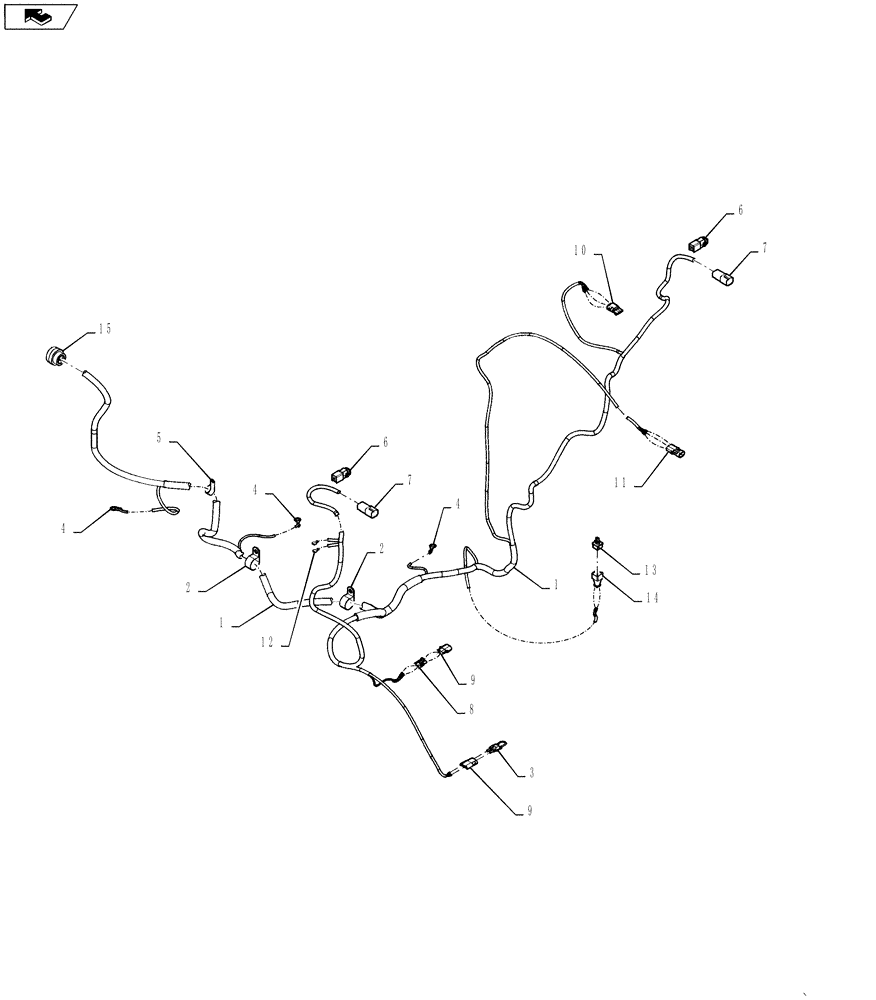

Запчасти Case 621F (55.100.AC[01]) - FRONT CHASSIS HARNESS (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case 621F - (55.100.AC[01]) - FRONT CHASSIS HARNESS (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/140043.png)
1
13
8
4
6
1
12
2
4
11
9
14
3
9
6
10
5
4
2
15
7
7
№
Артикул
Название
Примечание
Количество
1
84417997
WIRE HARNESS
Front Chassis, Incl. 2-15
1шт.
2
515-24349
CLAMP,1 3/8", Insul, 7/16" Bolt
2шт.
3
8602937
WIRE HARNESS
Jumper Rollback Pressure
1шт.
4
1964718C1
TERMINAL CONNECTOR
Ring
3шт.
5
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
1шт.
6
84253889
JUNCTION
2шт.
7
225351C1
ELEC CONNECTOR,Female, 6 Pin
2шт.
8
245482C1
ELEC CONNECTOR,2 Pin
1шт.
9
245483C1
ELEC CONNECTOR,Male, 2 Pin
2шт.
10
245484C1
ELEC CONNECTOR,3 Pin
1шт.
11
245485C1
ELEC CONNECTOR,Male, 3 Pin
1шт.
12
282459A1
ELEC CONNECTOR,Female, 0.75 - 2 mm2
2шт.
13
291717A1
ELEC CONNECTOR,Male, 2 Pin
1шт.
14
291718A1
ELEC CONNECTOR,Female, 2 Pin
1шт.
15
319149A1
CONNECTOR, ELEC
CONNECTOR 18-Cavity Receptacle
1шт.
Выбрано товаров: 15
