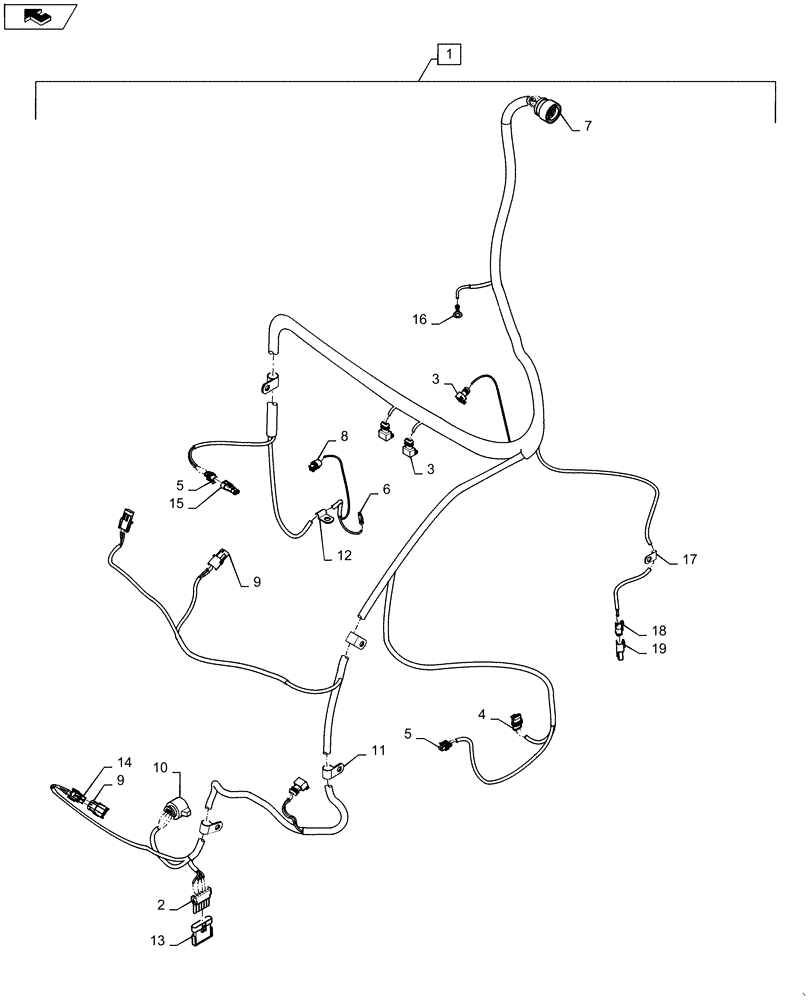

Запчасти Case 621F (55.024.AA[02]) - TRANSMISSION HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

84544854

WIRE HARNESS

Transmission, Incl 2 - 19

1шт.

2

245488C1

ELEC CONNECTOR,6 Pin

SEC Starter

1шт.

3

291718A1

ELEC CONNECTOR,Female, 2 Pin

Torque Converter Output Sender

1шт.

4

291719A1

CONNECTOR, ELEC

Output Speed Sensor

1шт.

5

371614A1

ELEC CONNECTOR,Female, 2 Pin

Transmission Fluid Filter Maintenance

1шт.

6

1964703C1

TERMINAL CONNECTOR

Transmission Filter Reset Switch

1шт.

7

380838A1

ELEC CONNECTOR,Male, 31 Pin

Transmission to Cab

1шт.

8

194788A1

CONNECTOR, 2-POLE

Hyd Temp

1шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

PBD, Break Declutch Switch

1шт.

10

371566A1

CONNECTOR,ELECTRIC

Transmission Control

1шт.

11

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

Transmission Harness Mounting

5шт.

12

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

Transmission Harness Mounting

1шт.

13

245489C1

ELEC CONNECTOR,Male, 6 Pin

SEC Starter, Outer Shell

1шт.

14

245482C1

ELEC CONNECTOR,2 Pin

Gearbox, PBD

1шт.

15

371615A1

CONNECTION,ELECTRIC

2-Cavity Receptacle

1шт.

16

1964718C1

TERMINAL CONNECTOR

10mm Stud, Transmission Ground

1шт.

17

84370849

CLAMP

7.9mm, Insulated

1шт.

18

225316C1

ELEC CONNECTOR,Female, 2 Pin

Diffential Lock Solenoid

1шт.

19

225315C1

ELEC CONNECTOR,Male, 2 Pin

Diffential Lock Solenoid, Outer

1шт.

20

245483C1

ELEC CONNECTOR,Male, 2 Pin

PRB2, Red Break Switch

1шт.

21

291718A1

ELEC CONNECTOR,Female, 2 Pin

Engine Speed Sensor

1шт.

22

291718A1

ELEC CONNECTOR,Female, 2 Pin

Intermediate Speed Sensor

1шт.

23

291718A1

ELEC CONNECTOR,Female, 2 Pin

Turbo Speed

1шт.

24

371614A1

ELEC CONNECTOR,Female, 2 Pin

Lock Up Valve

1шт.

25

245483C1

ELEC CONNECTOR,Male, 2 Pin

PRB1, Torque Converter Lock Up

1шт.
