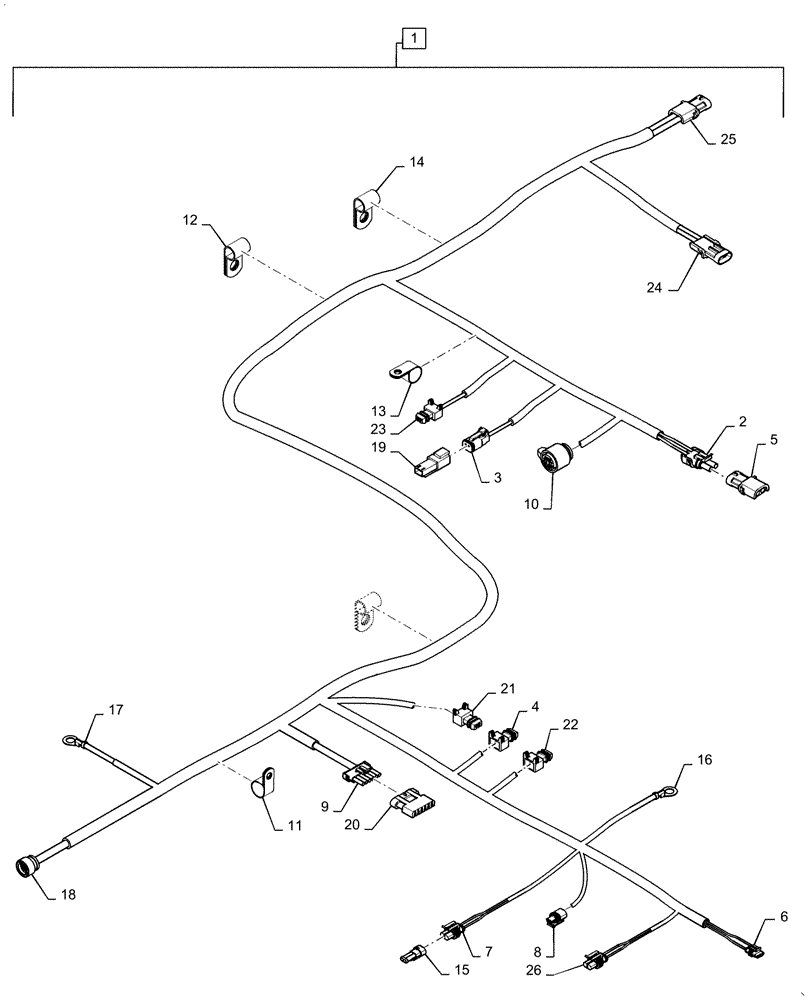

Запчасти Case 621F (55.024.AA[02]) - TRANSMISSION HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

84292030

HARNESS

Incl. 2-25

1шт.

2

245482C1

ELEC CONNECTOR,2 Pin

1шт.

3

225316C1

ELEC CONNECTOR,Female, 2 Pin

1шт.

4

291718A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

5

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

6

291719A1

CONNECTOR, ELEC

CONNECTOR 3-Cavity Plug

1шт.

7

371614A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

8

194788A1

CONNECTOR, 2-POLE

1шт.

9

245488C1

ELEC CONNECTOR,6 Pin

1шт.

10

371566A1

CONNECTOR,ELECTRIC

16 Cavity Plug

1шт.

11

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

12

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

13

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

14

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

1шт.

15

371615A1

CONNECTION,ELECTRIC

2-Cavity Receptacle

1шт.

16

1964703C1

TERMINAL CONNECTOR

Ring

1шт.

17

1964718C1

TERMINAL CONNECTOR

Ring

1шт.

18

380838A1

ELEC CONNECTOR,Male, 31 Pin

1шт.

19

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

20

245489C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

21

291718A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

22

291718A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

23

291718A1

ELEC CONNECTOR,Female, 2 Pin

1шт.

24

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

25

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

26

291719A1

CONNECTOR, ELEC

Speed Sensor

1шт.
