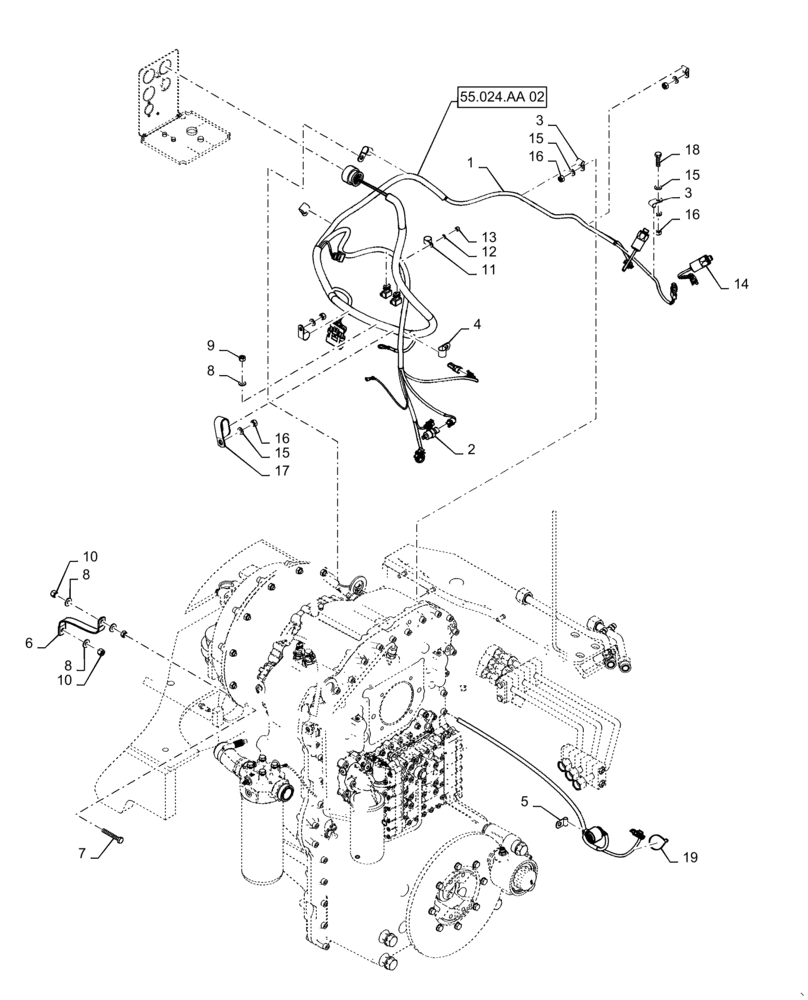

Запчасти Case 621F (55.024.AA[01]) - TRANSMISSION HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

84292030

HARNESS

Transmission

1шт.

2

321446A1

SENSOR

Engine Coolant

1шт.

3

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

2шт.

4

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

5

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

6

79028421

GROUND CABLE

Strap

1шт.

7

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

1шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

13

832-10406

NUT,M6 x 1, Cl 8

1шт.

14

87728742

SWITCH

Redundant Brake

2шт.

15

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

16

832-46410

NUT,M10 x 1.5, Cl 8

6шт.

17

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

18

613-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.
