Запчасти Case 621F (55.015.AB[02]) - HARNESS ENGINE AND REAR CHASSIS ASSEMBLY (55) - ELECTRICAL SYSTEMS

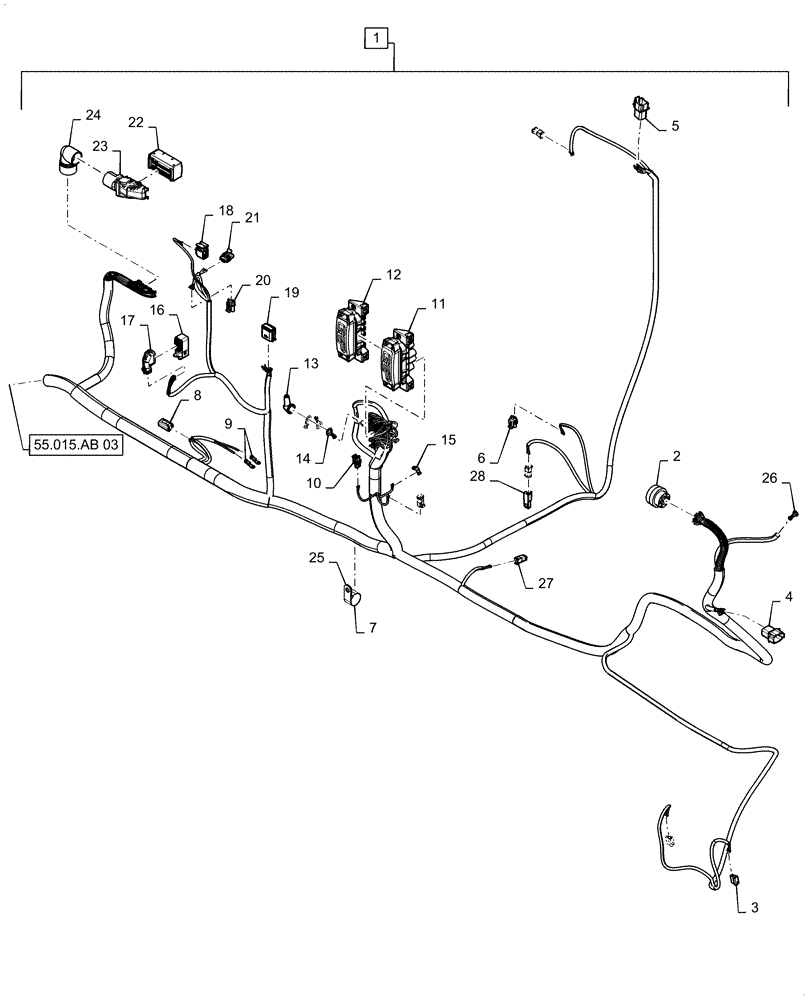

Схема запчастей Case 621F - (55.015.AB[02]) - HARNESS ENGINE AND REAR CHASSIS ASSEMBLY (55) - ELECTRICAL SYSTEMS
55.015.ab 03
11
15
10
1
17
19
3
16
5
22
21
27
26
23
25
7
24
4
20
12
8
13
14
9
18
28
6
2

Артикул

Название

Примечание

Количество

1

47679709

WIRE HARNESS

Engine and Rear Chassis Harness, Incl 2 - 27, Serial Range: -NFF232958

1шт.

1

47817429

WIRE HARNESS

Engine and Rear Chassis Harness, Incl 2 - 27, Start Serial: NFF232959

1шт.

2

374973A1

CONNECTOR,ELECTRIC

Engine

1шт.

3

3227856R1

CONNECTION

Front / Rear Washer

2шт.

4

225411C1

CONNECTOR, ELEC

Engine, Cab

1шт.

5

225320C1

ELEC CONNECTOR

Engine to Hood

1шт.

6

256340A1

CONNECTOR, ELEC

Fan Reverse, Power, Solenoid

1шт.

7

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

DEF Quality Jumper

1шт.

9

1964703C1

TERMINAL CONNECTOR

Fuel Sender

2шт.

10

82012083

WIRE CONNECTOR,Female

Grid Heater Relay

1шт.

11

84563565

FUSE HOLDER

Assembly

1шт.

12

84380518

FUSE BOX

Fuse Holder Assembly

1шт.

13

399470R1

BOOT

1шт.

14

1964723C1

TERMINAL CONNECTOR

Battery Power

3шт.

15

47426283

TERMINAL

Starter Relay

1шт.

16

47421681

ELEC CONNECTOR

Pump

1шт.

17

84567010

COVER

Pump Connector Protector

1шт.

18

84146685

WIRE CONNECTOR,Female, 3 Cavities

DEF Tank Heat

1шт.

19

87695592

CONTACT HOUSING,Female, 12 Pole

Engine to SCR

1шт.

20

84062580

CONNECTOR, ELEC

DEF Tank Level

1шт.

21

182069A1

CONNECTOR, ELEC

1шт.

22

84300197

ELEC CONNECTOR

ECU

1шт.

23

84300198

ELEC CONNECTOR

ECU

1шт.

24

8602414

ELBOW

ECU Connector

1шт.

25

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

1шт.

26

1964722C1

TERMINAL CONNECTOR

Power, Ground

1шт.

27

225316C1

ELEC CONNECTOR,Female, 2 Pin

4шт.

28

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

Выбрано товаров: 29
