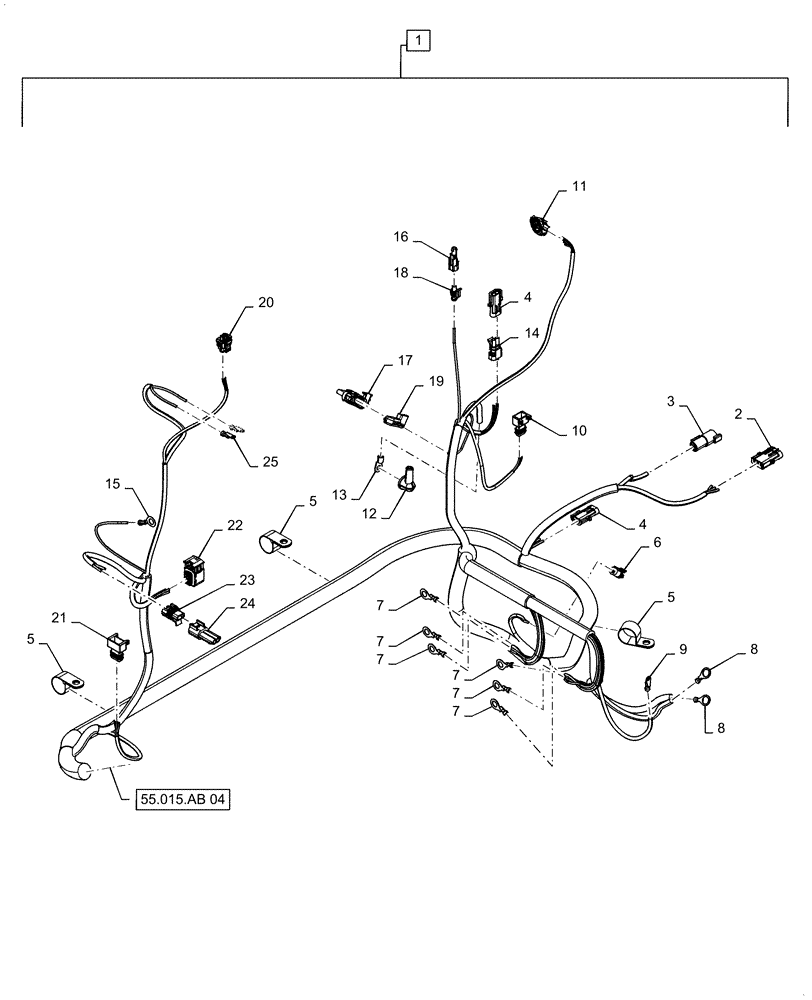

Запчасти Case 621F (55.015.AB[01]) - HARNESS, ENGINE AND REAR CHASSIS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

47679709

WIRE HARNESS

Assembly, Incl 2 - 25, Serial Range: -NFF232958

1шт.

1

47817429

WIRE HARNESS

, Start Serial: NFF232959

1шт.

2

245485C1

ELEC CONNECTOR,Male, 3 Pin

Hood Switch

1шт.

3

87706435

TERMINAL CONNECTOR

Cab Power

1шт.

4

245485C1

ELEC CONNECTOR,Male, 3 Pin

2шт.

5

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

Wire Harness, Mounting

3шт.

6

194788A1

CONNECTOR, 2-POLE

2 Cavity Plug

1шт.

7

1964718C1

TERMINAL CONNECTOR

Ground, Washer Motor

1шт.

8

382256A1

TERMINAL CONNECTOR

Starter Power

2шт.

9

1964720C1

TERMINAL CONNECTOR

Starter Signal

1шт.

10

291718A1

ELEC CONNECTOR,Female, 2 Pin

Air Filter

1шт.

11

87709809

ELEC CONNECTOR

Humidity, Ambient Temperature

1шт.

12

399470R1

BOOT

Terminal Cover

1шт.

13

84303407

TERMINAL,Ring Tongue, M8

Alternator

1шт.

14

245482C1

ELEC CONNECTOR,2 Pin

A/C High Pressure Switch

1шт.

15

1964706C1

TERMINAL CONNECTOR

Ground

1шт.

16

8602418

ELEC CONNECTOR

Compressor Clutch

1шт.

17

8602487

PLUG

Alternator

1шт.

18

8602417

TERMINAL CONNECTOR,Female

Compressor Clutch

1шт.

19

8602488

COVER

Alternator

1шт.

20

87709793

WIRE CONNECTOR,Female, 2 Cavities

Temp Sensor

1шт.

21

8602416

CONNECTOR,ELECTRIC

Water In Fuel Sensor

1шт.

22

84152563

ELEC CONNECTOR

Turbo

1шт.

23

182069A1

CONNECTOR, ELEC

Heater, Water Separator

1шт.

24

182068A1

CONNECTOR, ELEC

Heater, Water Separator

1шт.

25

1964702C1

TERMINAL CONNECTOR

Backup Alarm

2шт.

26

1964718C1

TERMINAL CONNECTOR

Ground, Rear Lighting

1шт.

27

1964718C1

TERMINAL CONNECTOR

Ground, Engine

1шт.

28

1964718C1

TERMINAL CONNECTOR

1шт.

29

1964718C1

TERMINAL CONNECTOR

1шт.

30

1964718C1

TERMINAL CONNECTOR

1шт.
