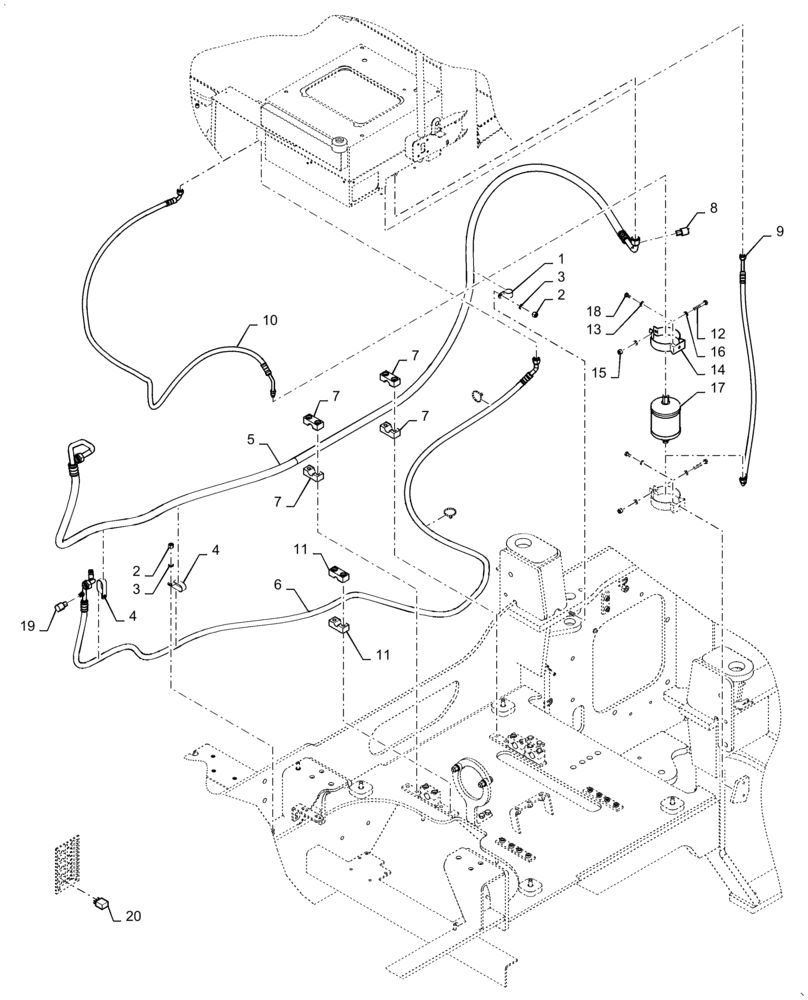

Запчасти Case 621F (50.200.BB[01]) - A/C CONDENSER LINE INSTALLATION (50) - CAB CLIMATE CONTROL

1

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

4

31-1081

CLAMP

Double

2шт.

5

47624326

HOSE

Compressor to Condenser, 3781.6mm Lg

1шт.

6

47597623

HOSE

Cab to Compressor, 3650mm Lg

1шт.

7

367489A1

BLOCK

Mounting

2шт.

8

122579A1

SWITCH, A/C LOW PRES

Low

1шт.

9

84191329

A/C HOSE

Cab to Dryer, 1056mm Lg

1шт.

10

84192894

A/C HOSE

Dryer to Condenser, 2049mm Lg

1шт.

11

379374A1

BLOCK

Mounting

1шт.

12

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

433723A1

CLAMP

Receiver/Dryer

2шт.

15

832-10406

NUT,M6 x 1, Cl 8

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

17

295006A1

RECEIVER-DRYER

Reservoir

1шт.

18

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

19

232948A1

SWITCH, A/C HIGH PRE

400 PSI

1шт.

20

87312626

RELAY,24V

5-Pin

1шт.
