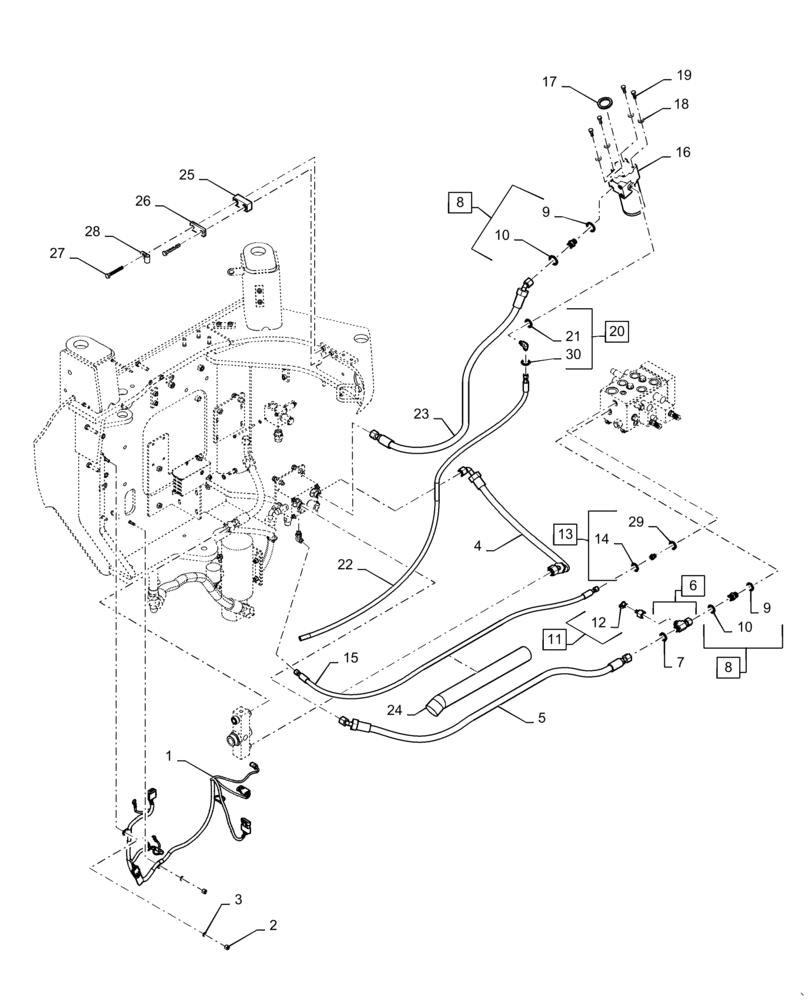

Запчасти Case 621F (41.910.AE) - AUXILIARY STEERING LINES AND FITTING (41) - STEERING

1

84551538

WIRE HARNESS

Harness Secondary Steering Module

1шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

4

87692443

HOSE ASSY.,15.88mm ID x 998mm L, SAE 100R1

Filter Manifold

1шт.

5

87653915

HOSE

Pressure

1шт.

6

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 7

1шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 9 - 10

2шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

11

324201A1

PLUG

Diagnostic, Incl 12

1шт.

12

H434163

DUST CAP

Incl in 11

1шт.

13

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 14, 29

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

87653975

HOSE

Load Sense

1шт.

16

87307060

HYDRAULIC VALVE

Orbitrol 60 cu

1шт.

17

76043957

GASKET

Hydraulic Valve Mounting

1шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

19

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

20

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl 21, 30

1шт.

21

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

22

87653919

HOSE

Load Sense

1шт.

23

84403089

HOSE ASSY.,15.88mm ID x 1200mm L

Steering Pressure

1шт.

24

87559559

HOSE PROTECTION

1шт.

25

367489A1

BLOCK

Tube Mounting

1шт.

26

367658A1

PLATE

Clamp Cover

1шт.

27

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

28

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

29

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

30

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.
